FLOATING WINDOW T110
A Unique Exterior Sliding System.
The Aesthetics
The Floating Window T110 is an exterior sliding system that blends modern aesthetics with advanced functionality. Known for its sleek, minimalistic design, the T110 is ideal for contemporary architecture where both insulation and visual appeal are essential.
The Aesthetics
The Floating Window T110 is an exterior sliding system that blends modern aesthetics with advanced functionality. Known for its sleek, minimalistic design, the T110 is ideal for contemporary architecture where both insulation and visual appeal are essential.
Key Highlights
High Thermal Insulation
This system uses patented thermal technology, providing optimal insulation without compromising style, ensuring energy savings and climate control.
Innovative Design with Minimal Visibility
With only 30mm of visible aluminum at the interlocking profile, the Floating Window T110 offers an unobstructed view, perfect for clients seeking a near-invisible frame.
Easy Maintenance
The T110 features an invisible water evacuation system, reducing visible depth and making it easier to clean, an ideal choice for new builds or renovations.
Technical Specifications
Frame and Sash Construction
With frame widths of 125-214mm and sash widths of 32mm, the T110 provides an adaptable, robust system.
Capacity for Large Glass Panels
Supports a sash height of up to 2.6 meters, making it suitable for sizable glass panels without compromising structural strength.
T110 | FLOATING WINDOWS
Thermally Insulated
| FRAME WIDTH | 125, 214 MM |
| FRAME HEIGHT | 58 MM |
| SASH WIDTH | 32 MM |
| SASH HEIGHT | 30 MM |
| SASH TO SASH WIDTH | 30 MM |
| MAXIMUM HEIGHT OF SASH | 2.6 M |
| SASH WEIGHT | 120 KG |
| GLAZING | 24 MM |
| SILL | HIDDEN TRACK |

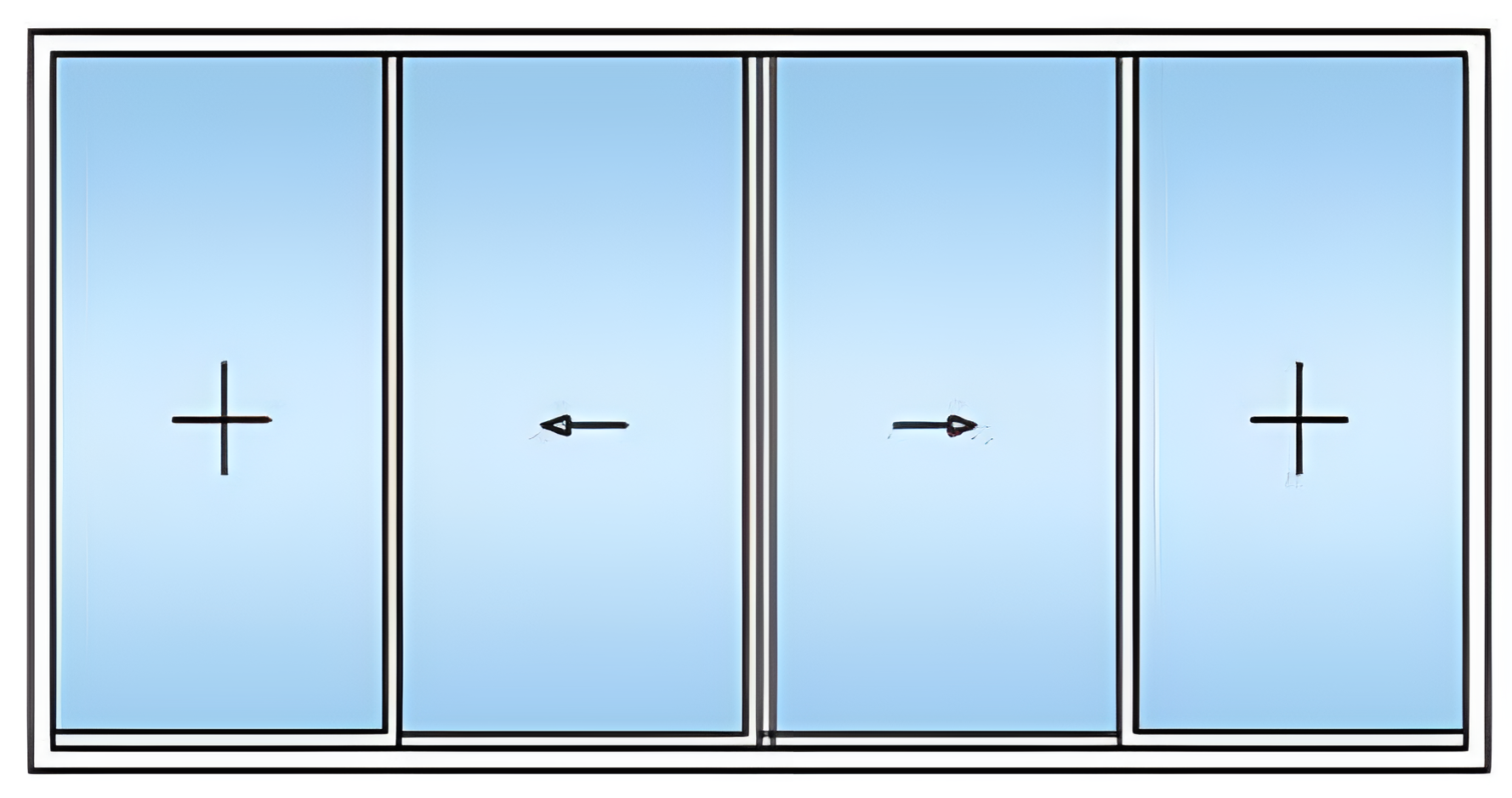

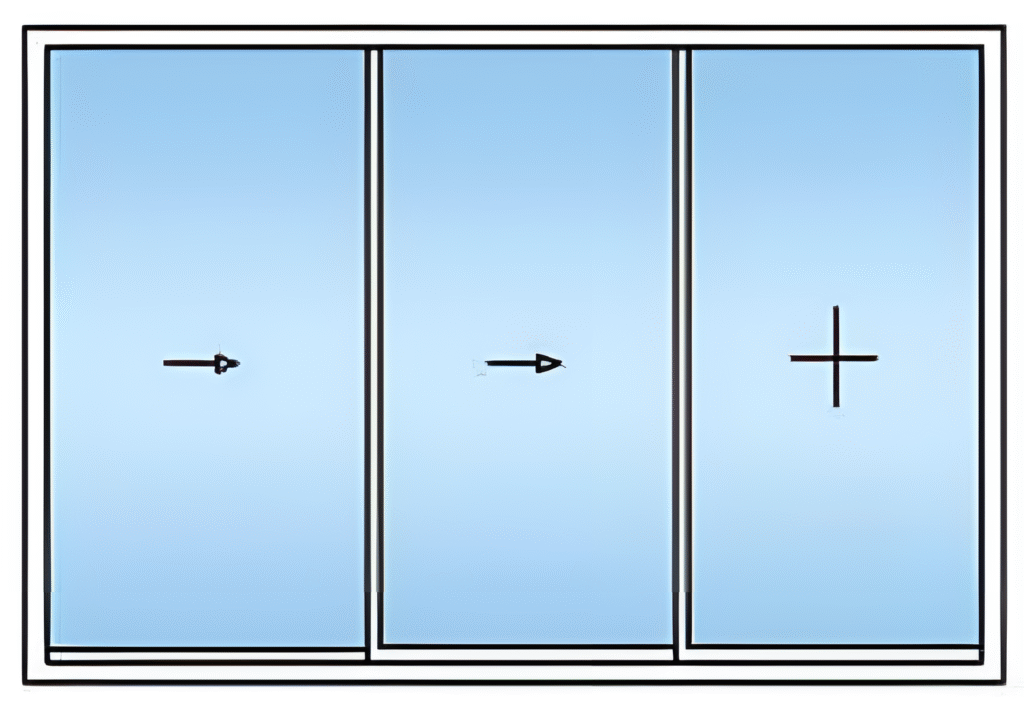

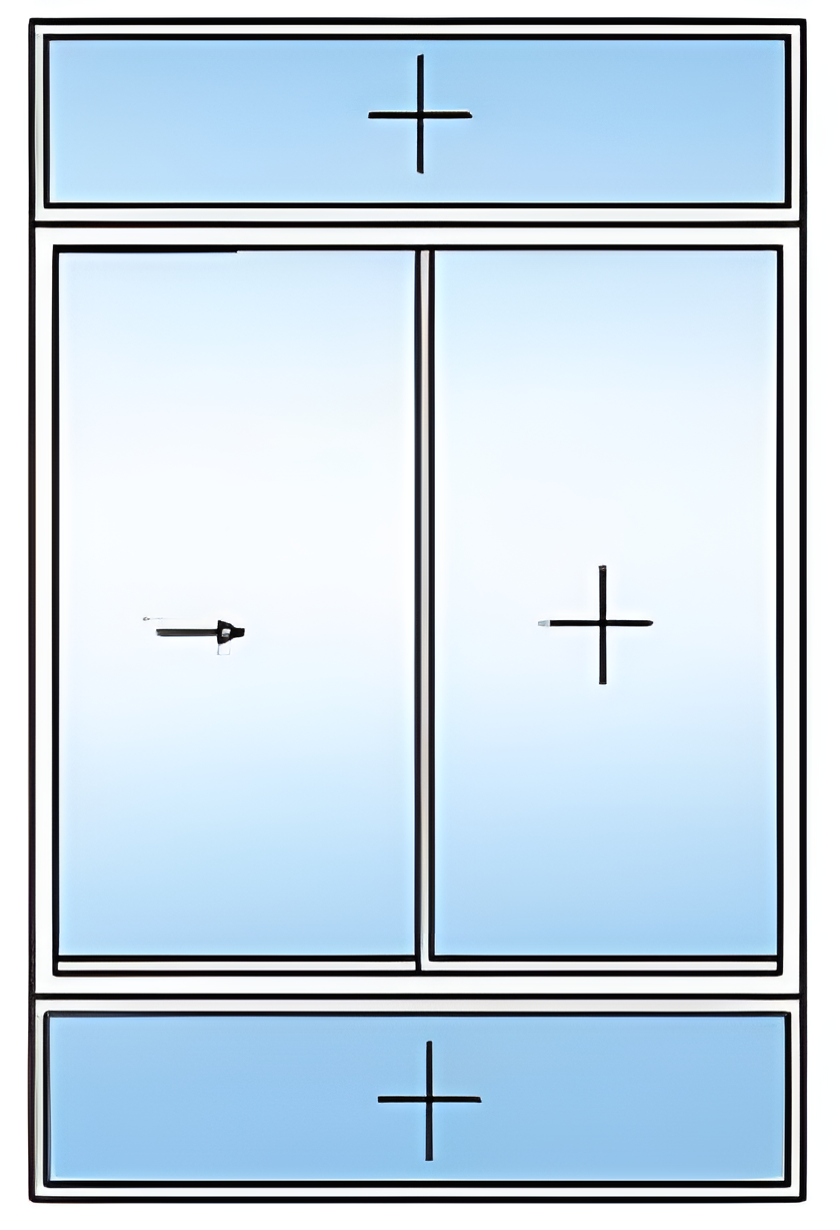

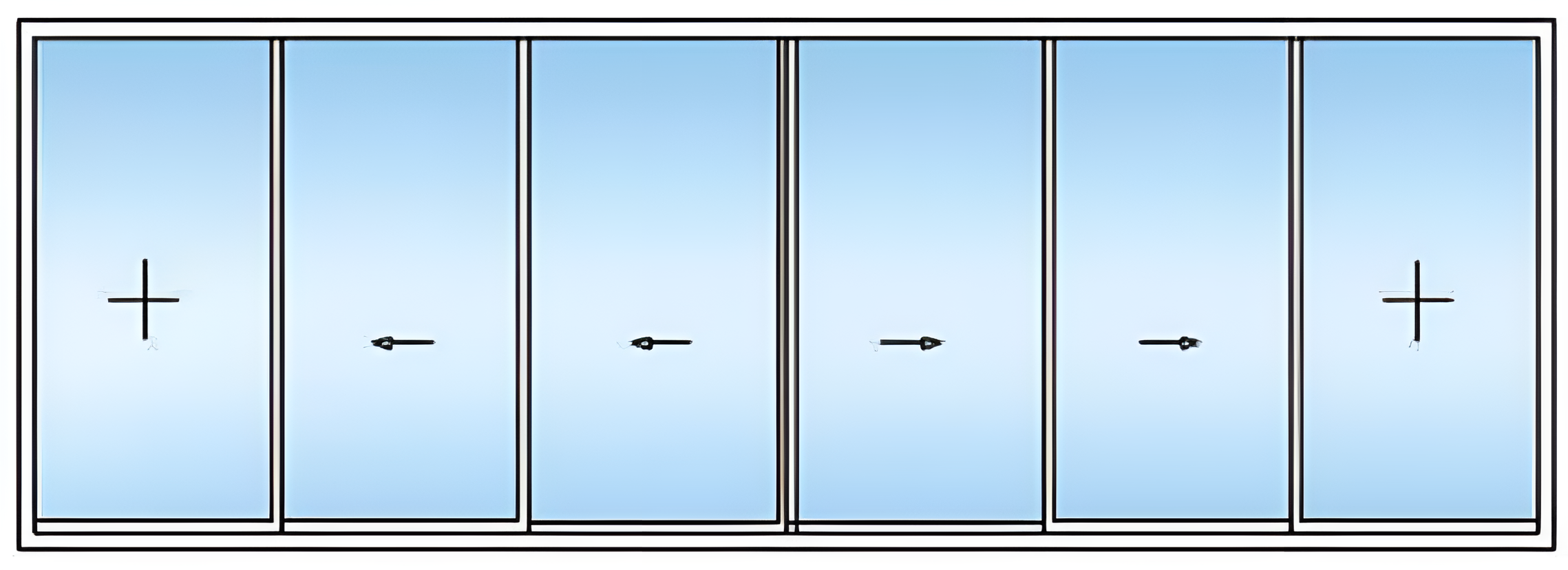

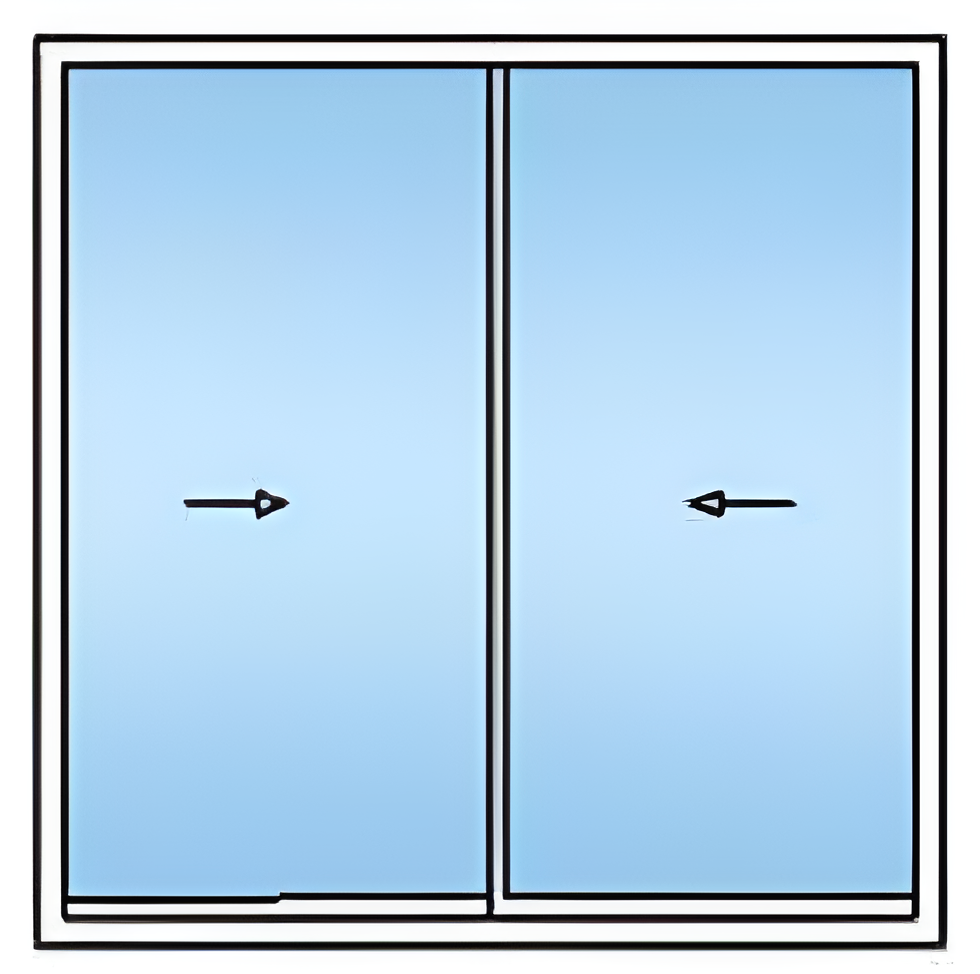

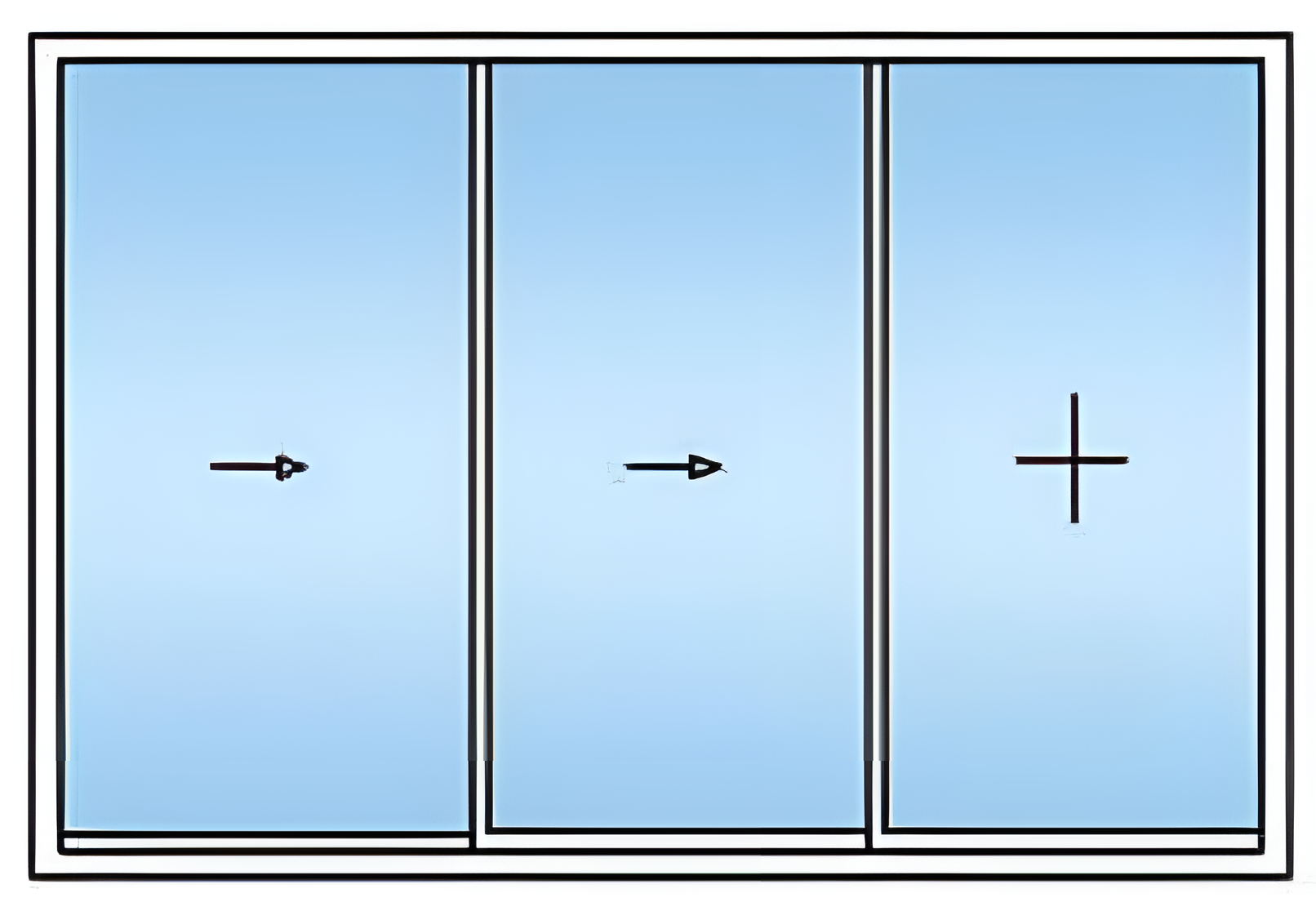

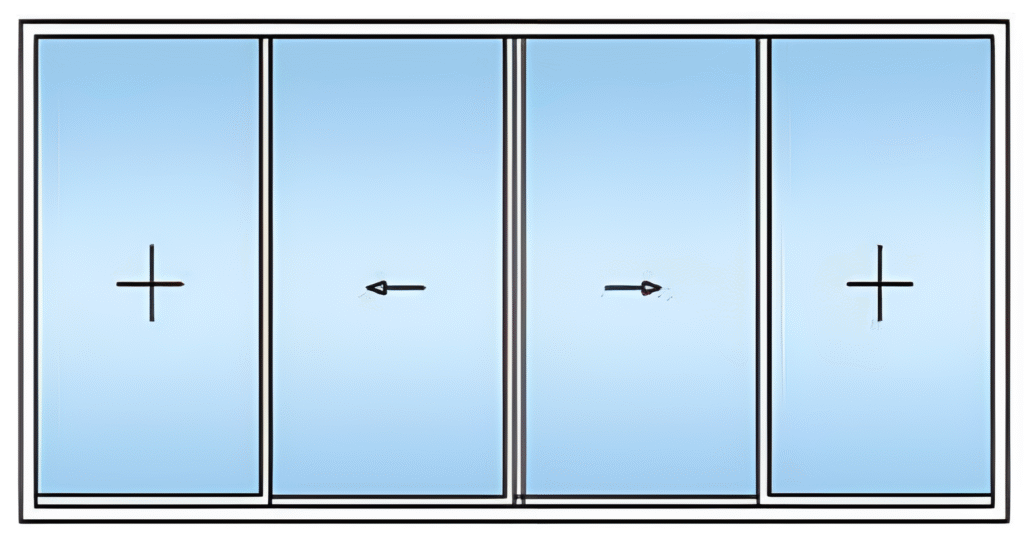

Typology
