FOLD & SLIDE T320
Available in Electroplated Finishes
The Performance
The Fold & Slide T320 offers a modern, high-performance folding door solution. Known for its flexibility, minimalistic design, and high thermal efficiency, the T320 is perfect for large spaces where maximum opening and minimal obstruction are desired.
The Performance
The Fold & Slide T320 offers a modern, high-performance folding door solution. Known for its flexibility, minimalistic design, and high thermal efficiency, the T320 is perfect for large spaces where maximum opening and minimal obstruction are desired.
Key Highlights
Unlimited Flexibility
Capable of reaching heights up to 3.5 meters and widths of 1 meter per sash, with no restrictions on total construction length. This system’s flexibility allows for vast, unobstructed openings.
Thermal Efficiency and Weather Resistance
With superior thermal insulation, the T320 is designed to withstand extreme weather conditions, including wind load, water resistance, and air permeability.
Variety of Finishes
Available in five electroplated finishes, including Black, White, Grey, Silver, and Gold, allowing clients to select the look that best complements their aesthetic vision.
Technical Specifications
Frame and Sash Construction
The T320 features a 71mm frame width and a sash-to-sash width of 150mm, creating a low-sightline aesthetic while preserving structural integrity.
Performance and Durability
Built with high-quality materials and designed for seamless operation, the T320 provides quiet and efficient folding action, suitable for both residential and commercial projects.
T320 | FOLD & SLIDE SYSTEM
Thermally Insulated
| FRAME WIDTH | 71 MM |
| FRAME HEIGHT | 45 MM |
| SASH WIDTH | 68 MM |
| SASH HEIGHT | 56 MM |
| INTERLOCKING PROFILE WIDTH | 150 MM |
| MAXIMUM HEIGHT OF SASH | 2.8 M |
| SASH WEIGHT | 150 KG |
| GLAZING | 30, 32 MM |
| INSULATION | PVC POLYMIDE |
| SILL | CONCEALED BOTTOM RAIL |

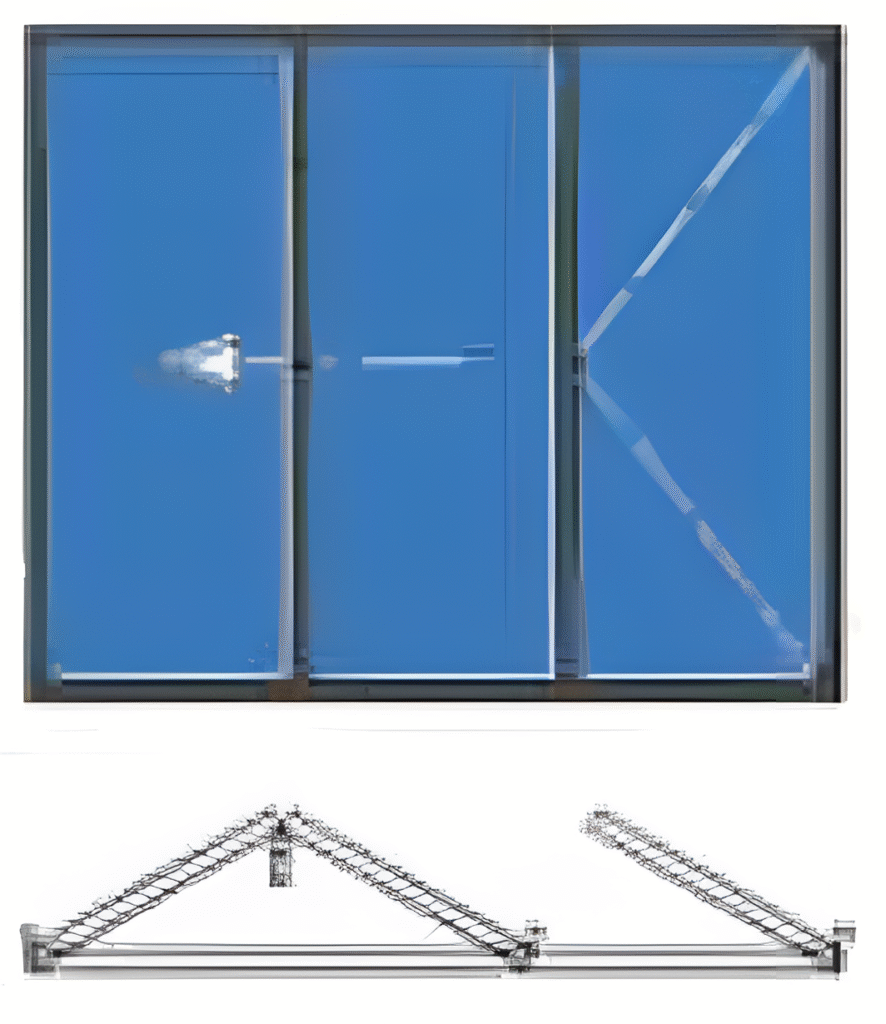

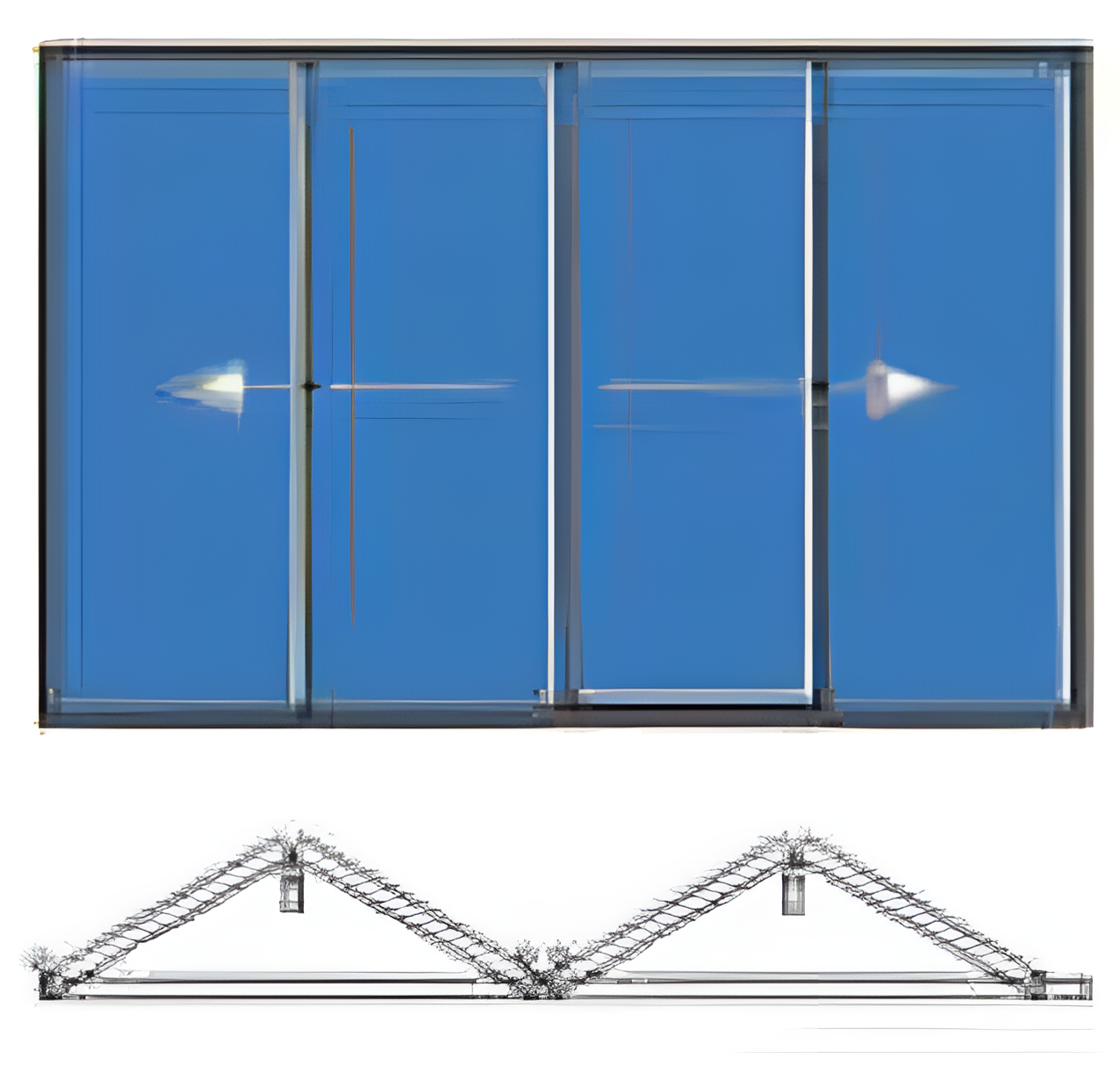

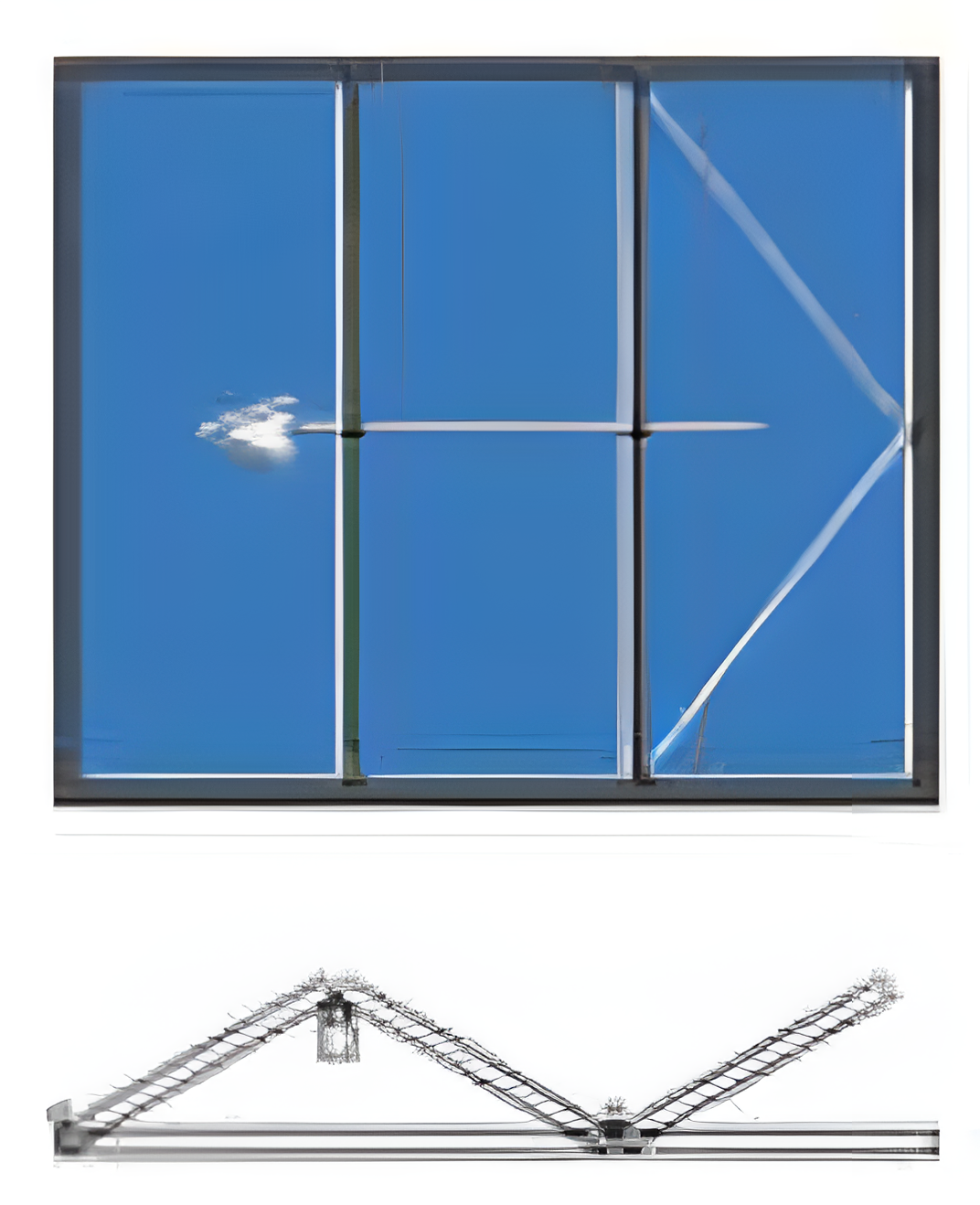

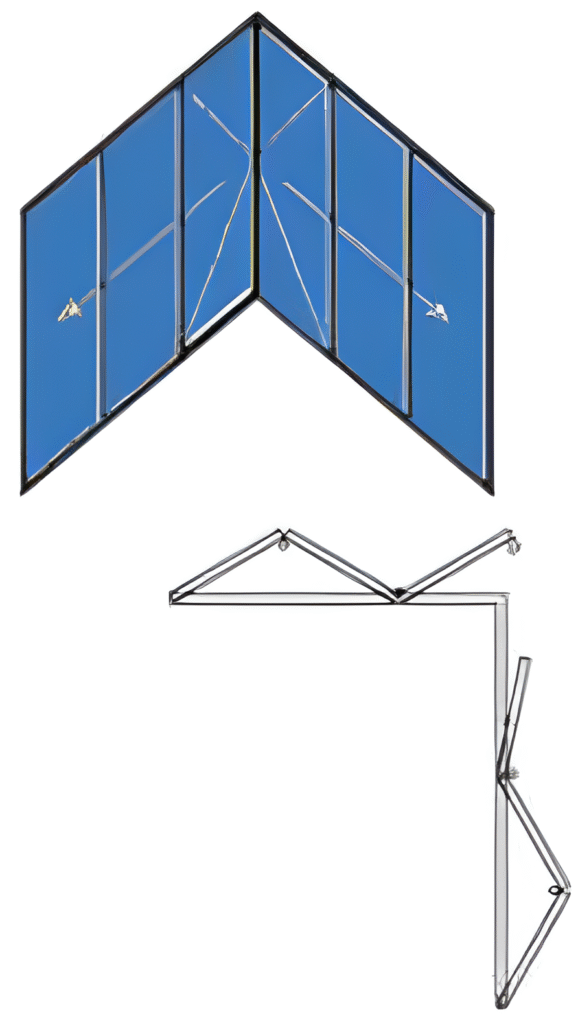

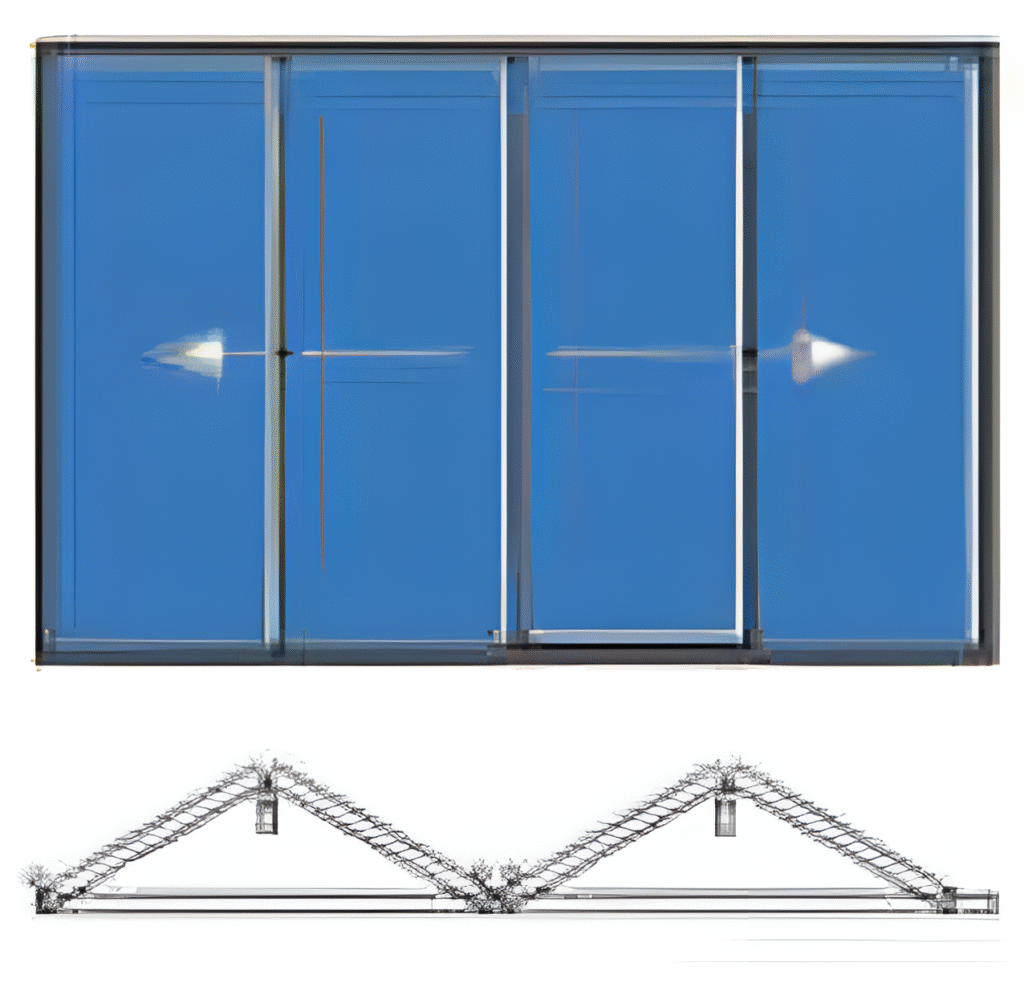

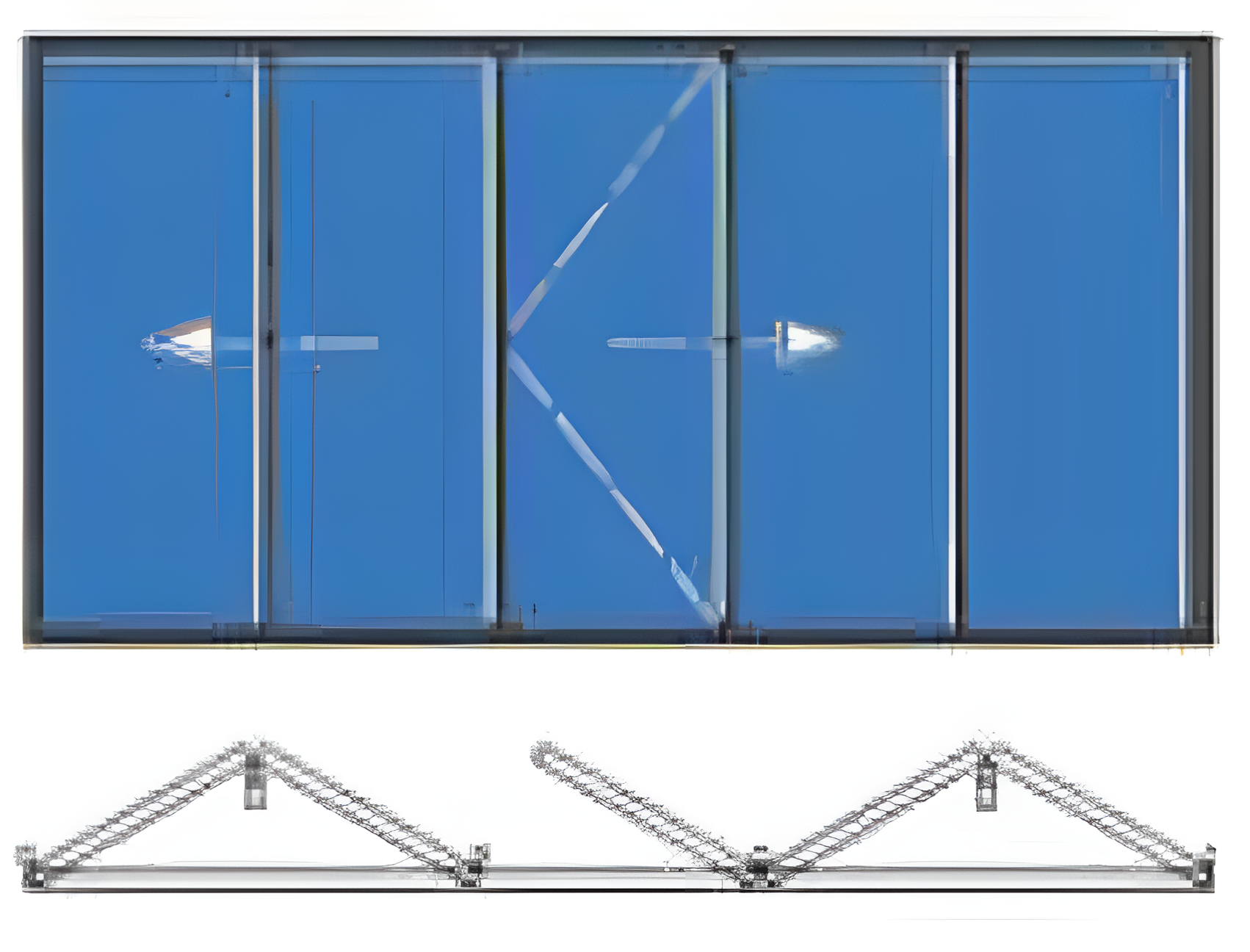

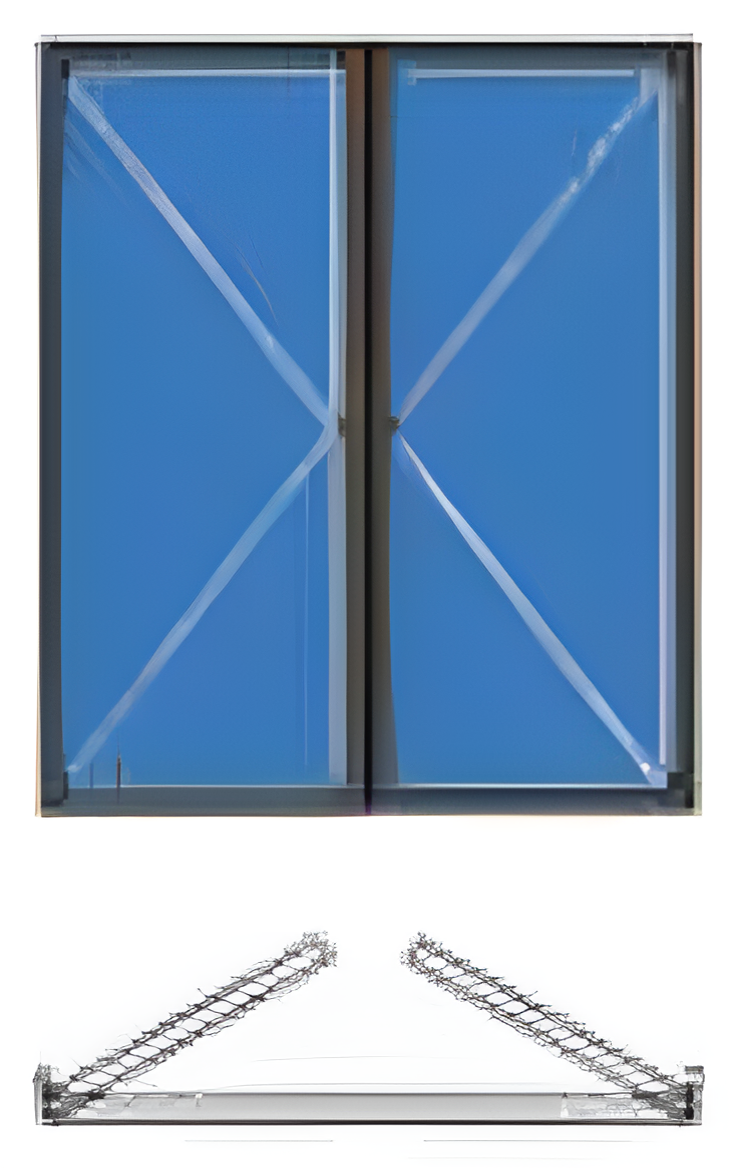

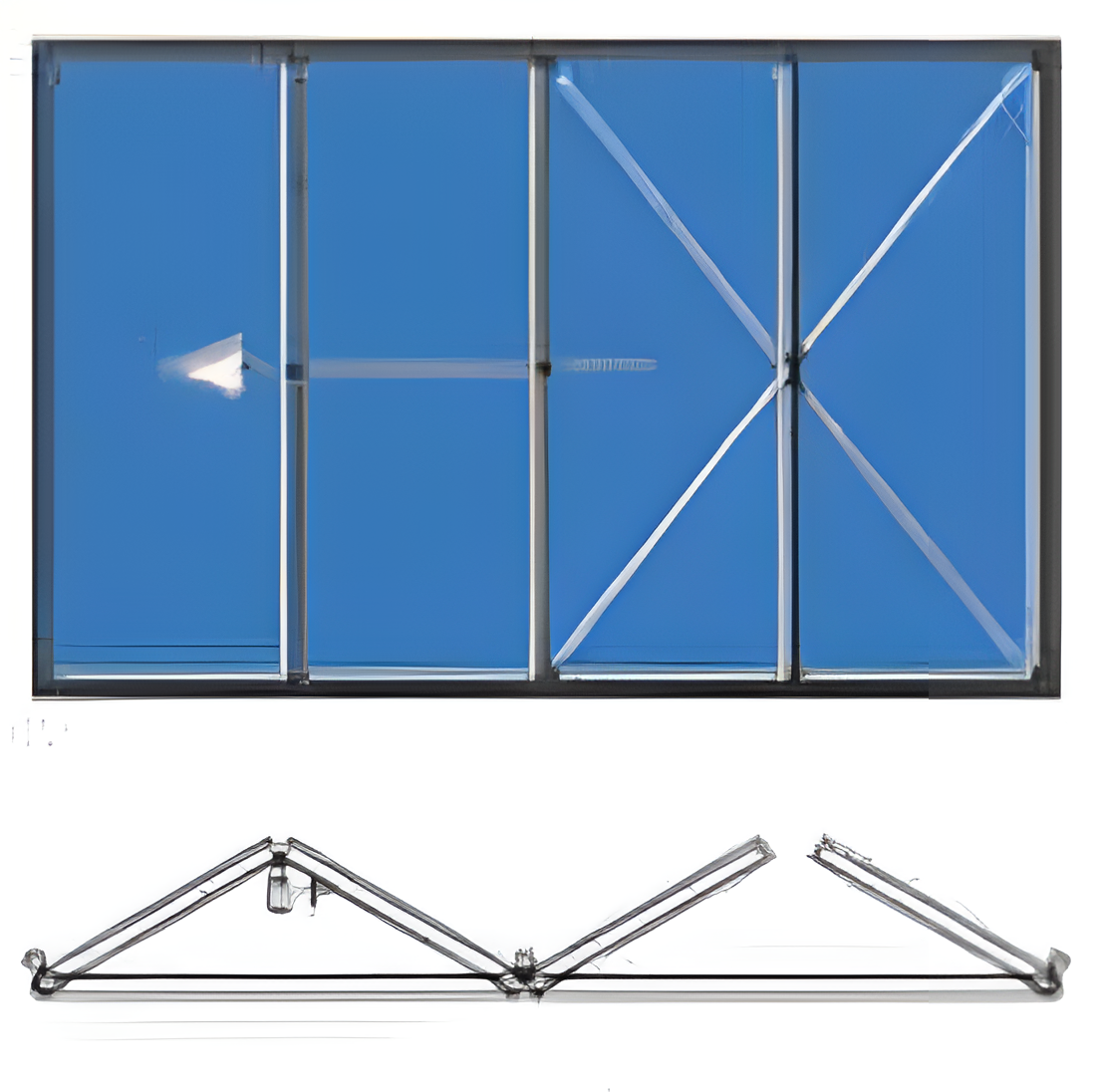

Typology
n+0
n+1
m+0
m+1
m+m
m+n

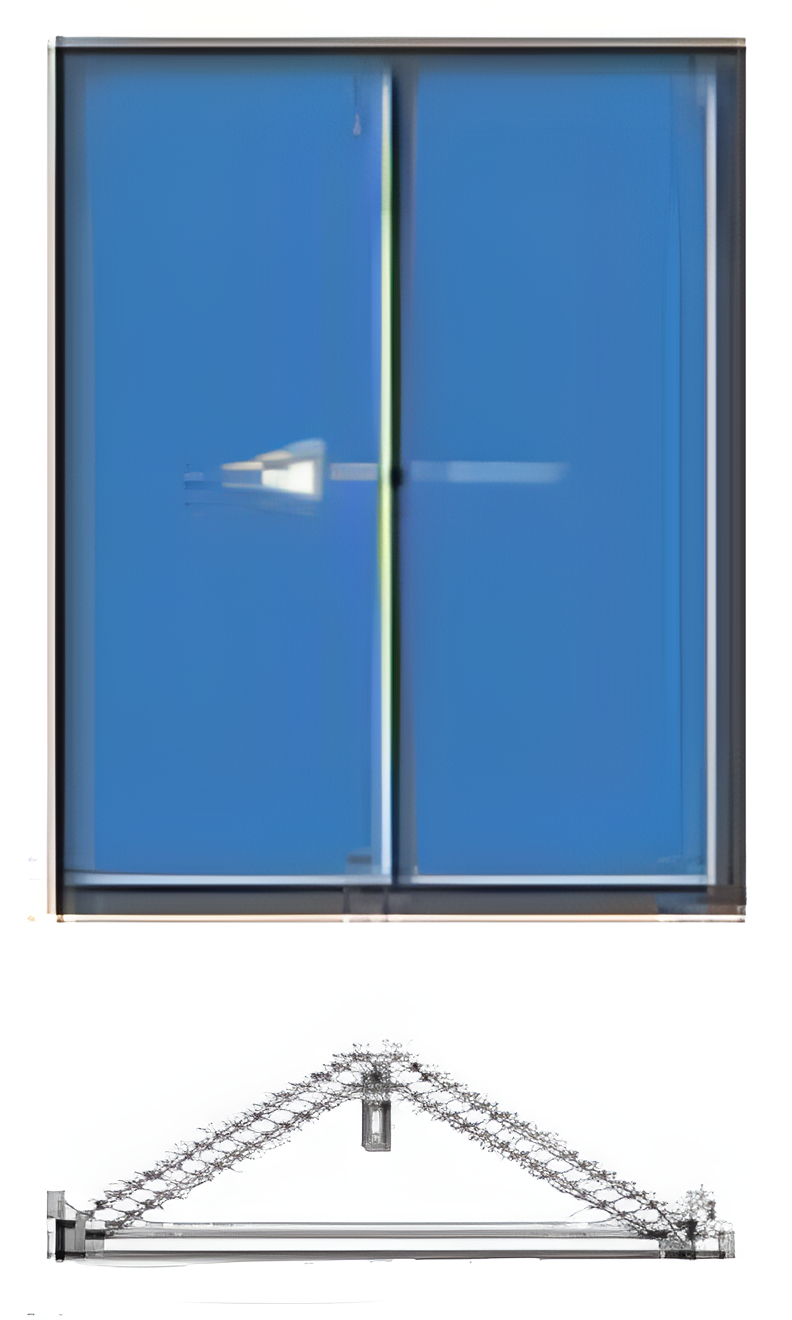

1+1
