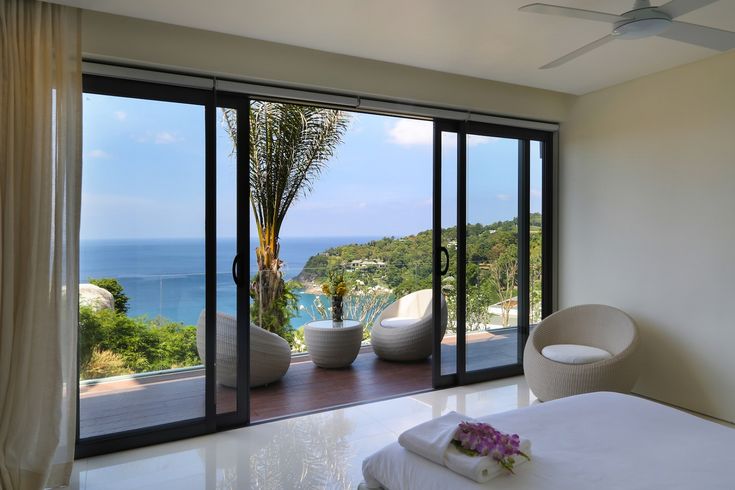

PANORAMIC T55
The Best Choice for Projects Needing Slim Aluminium With a Wide Span.
The Design!
The Panoramic T55 represents a pinnacle in minimalist architectural design, combining slim aluminum framing with vast glazing surfaces to deliver unbroken views and abundant natural light. The system is tailored for spaces where visibility, natural light, and aesthetic integration are paramount.
The Design!
The Panoramic T55 represents a pinnacle in minimalist architectural design, combining slim aluminum framing with vast glazing surfaces to deliver unbroken views and abundant natural light. The system is tailored for spaces where visibility, natural light, and aesthetic integration are paramount.
Key Highlights
Designed for Grand Spaces
The slim aluminum profile supports wide spans, ideal for large projects needing an uninterrupted flow between indoor and outdoor spaces.
Fully Concealed Profile
Unlike traditional frames, the Panoramic T55 can be integrated entirely into the surrounding architecture, disappearing into the wall, floor, and ceiling for a clean and elegant look.
Thermally Insulated
This system is constructed with materials such as PVC and polyamide, creating a thermal barrier that reduces heat transfer, making it suitable for both hot and cold climates. This feature helps in reducing energy costs by maintaining interior temperature consistency.
Smart Home Compatibility
With an innovative concealed motor, the T55 can be controlled via remote or voice commands, making it ideal for tech-savvy homeowners looking to integrate their doors with a smart home system.
Designed for Grand Spaces
The slim aluminum profile supports wide spans, ideal for large projects needing an uninterrupted flow between indoor and outdoor spaces.
Fully Concealed Profile
Unlike traditional frames, the Panoramic T55 can be integrated entirely into the surrounding architecture, disappearing into the wall, floor, and ceiling for a clean and elegant look.
Thermally Insulated
This system is constructed with materials such as PVC and polyamide, creating a thermal barrier that reduces heat transfer, making it suitable for both hot and cold climates. This feature helps in reducing energy costs by maintaining interior temperature consistency.
Smart Home Compatibility
With an innovative concealed motor, the T55 can be controlled via remote or voice commands, making it ideal for tech-savvy homeowners looking to integrate their doors with a smart home system.
Technical Specifications
Interlocking and Visibility
A 20mm interlocking profile width keeps sightlines minimal.
Frame and Sash Details
The frame has a width of 135mm and varies in height from 45mm to 125mm, while the sash width and height are optimized at 47mm and 24mm, respectively.
Maximum Height and Weight Capacity
This system is engineered to handle sash heights of up to 4.5 meters and a maximum sash weight of 800kg, allowing for larger glass surfaces without compromising structural integrity.
Concealed Bottom Rail
Ensures a seamless connection between indoor and outdoor areas, avoiding any visible threshold.
T55 | MINIMALISTIC SLIDING SYSTEM
Thermally Insulated
| FRAME WIDTH | 135 MM |
| FRAME HEIGHT | 45,125 MM |
| SASH WIDTH | 47 MM |
| SASH HEIGHT | 24 MM |
| INTERLOCKING PROFILE WIDTH | 20 MM |
| MAXIMUM HEIGHT OF SASH | 4.5 M |
| SASH WEIGHT | 800 KG |
| GLAZING | 36 MM |
| INSULATION | PVC, POLYMIDE |
| SILL | CONCEALED BOTTOM RAIL |
Typology

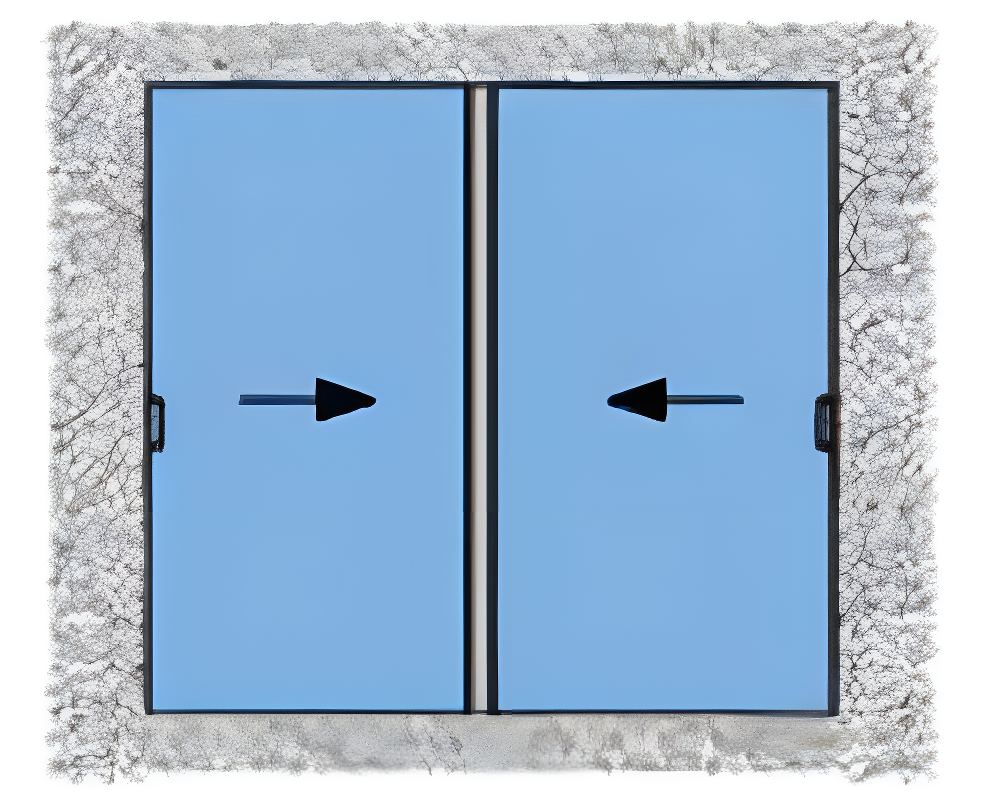

Double Horizontal Sliding Sash item description

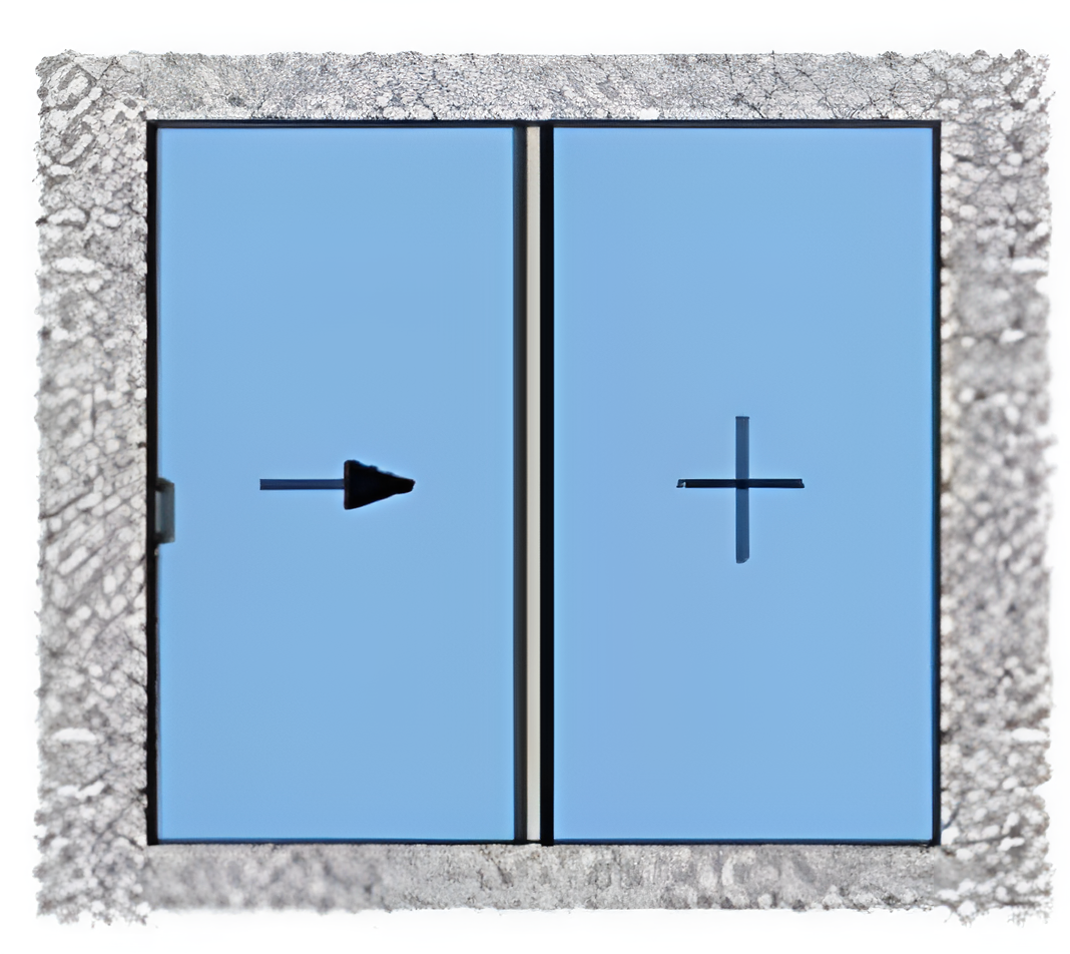

Single Sliding Sash With Fixed Light

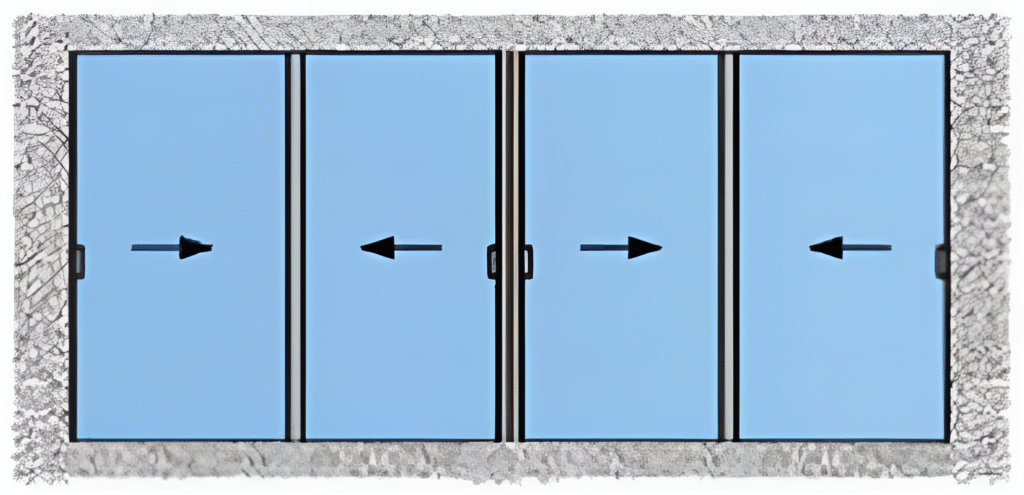

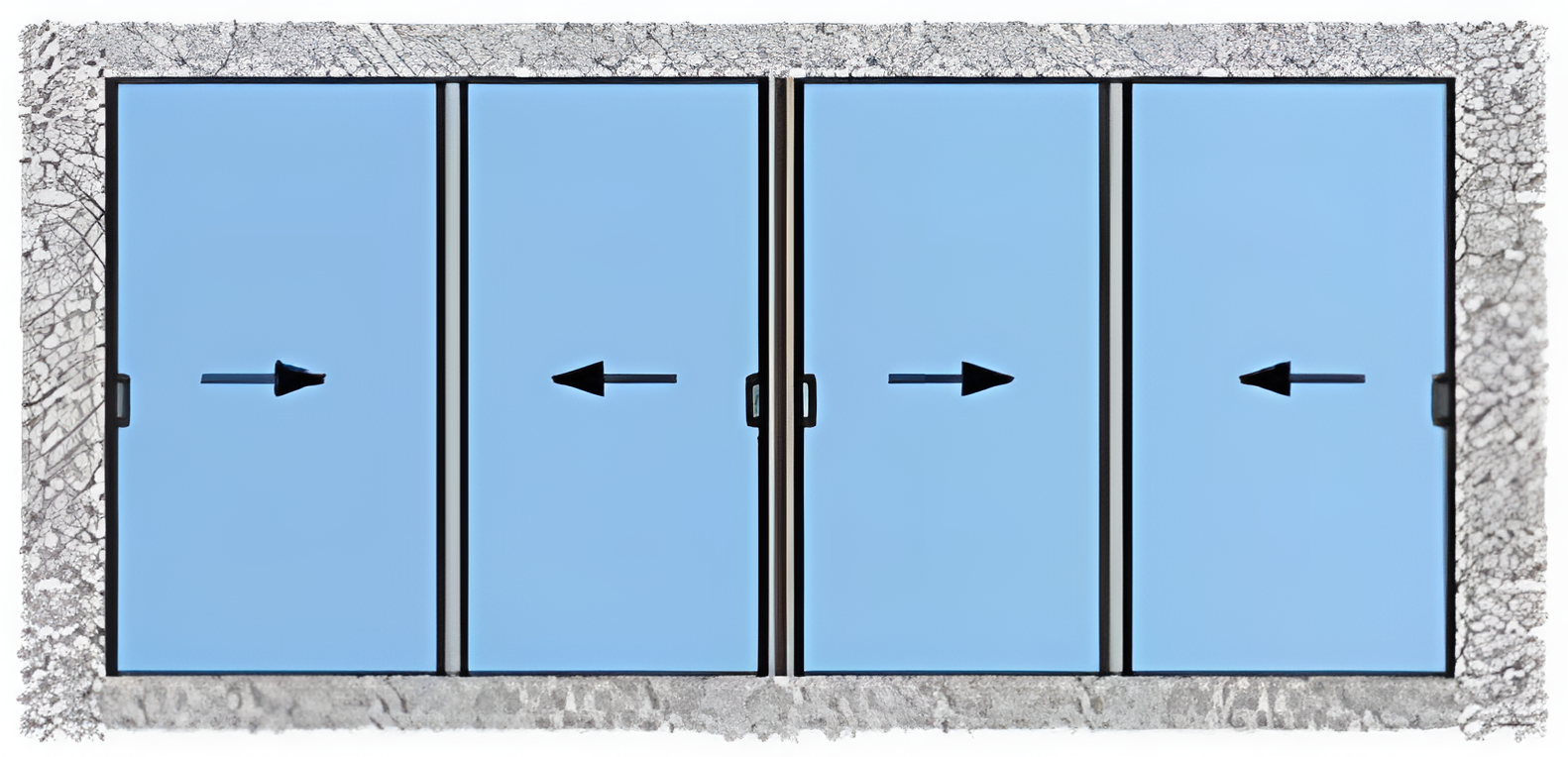

Four Horizontal Sliding Sashes With Meeting Style

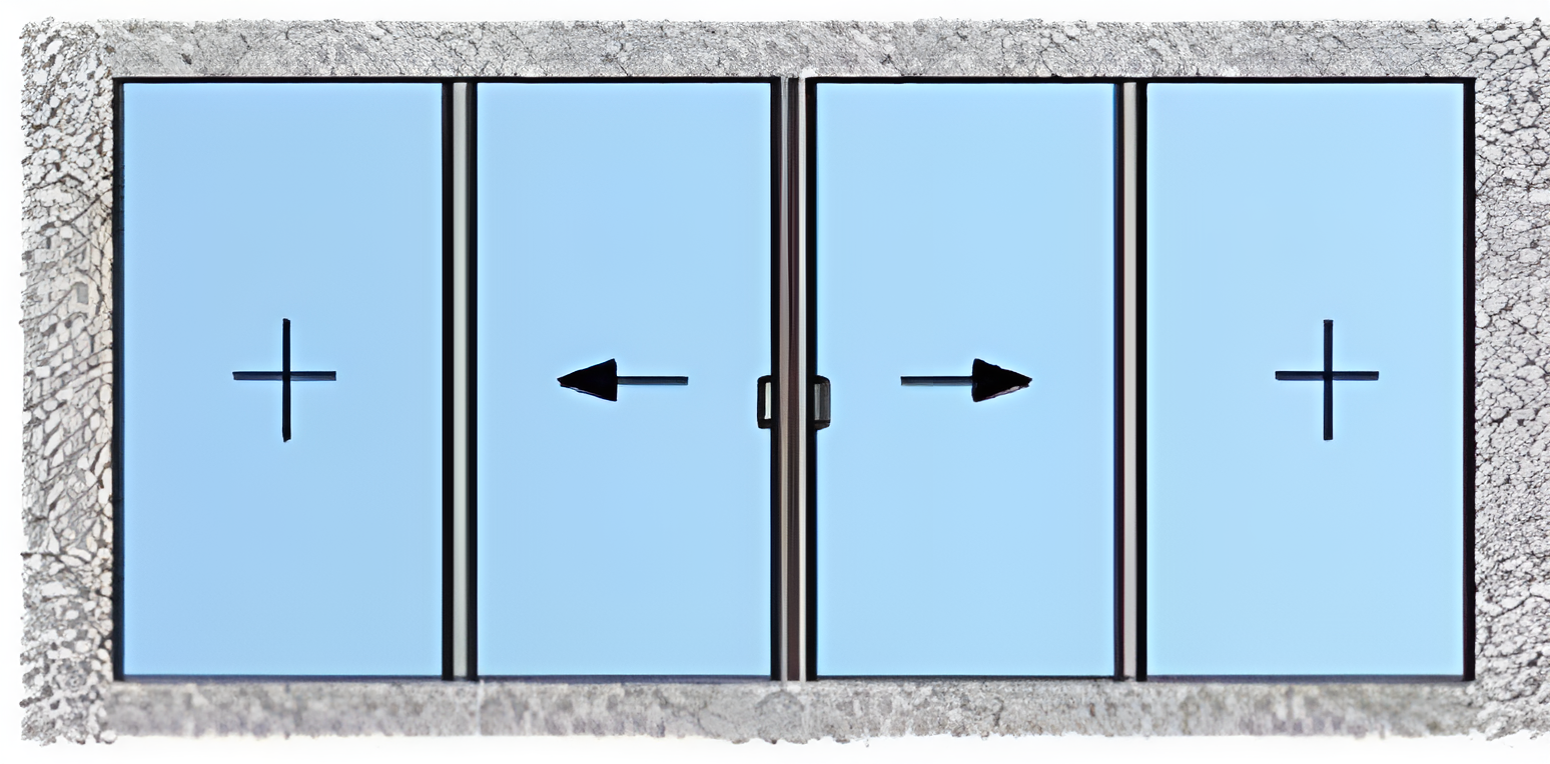

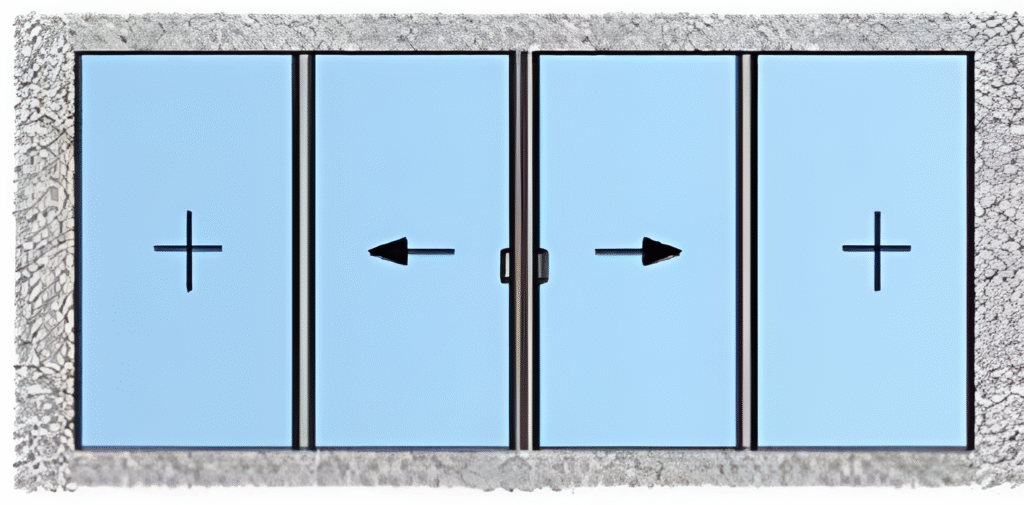

Double Horizontal Sliding Sash Meeting Style With Fixed Lights

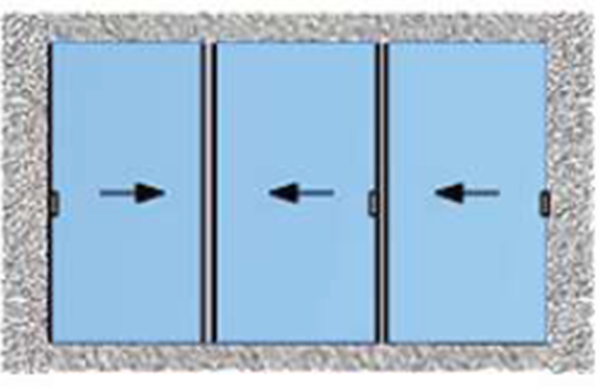

Triple Horizontal Sliding Sash
