PT DOORS T90
Creates More Accessible Opening With Smooth Operation.
The Solution

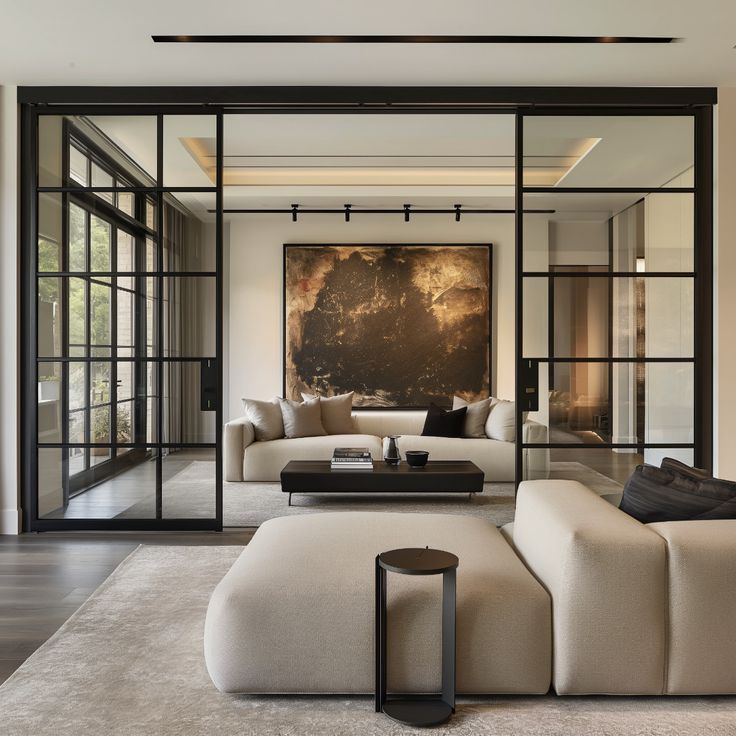

The PT Doors T90 system is designed with interior applications in mind, offering an elegant solution for partitioning spaces such as kitchens and living rooms. This system combines style, durability, and customization to create a distinct, contemporary look.
The Solution
The PT Doors T90 system is designed with interior applications in mind, offering an elegant solution for partitioning spaces such as kitchens and living rooms. This system combines style, durability, and customization to create a distinct, contemporary look.
Key Highlights
Smooth, Accessible Operation
Engineered for effortless movement, the T90 offers a smooth operating mechanism, ideal for high-traffic areas within residential or commercial properties.
Electroplated Finish Options
Available in five finishes—Black, White, Silver, Grey, and Gold—this system allows for customization that fits seamlessly into various interior designs.
Industrial-Inspired Design
With its “steel look,” the T90 introduces an industrial aesthetic, perfect for modern spaces that require both function and style.
Technical Specifications
Structural Details
Frame width of 116mm and frame height of 100mm provide a sturdy and reliable structure without overwhelming the aesthetic.
Large Glass Integration
Large glass panels are seamlessly integrated into the aluminum framework, allowing for a broader view while providing a sturdy partition.
T90 | PT DOORS
Thermally Insulated
| FRAME WIDTH | 116 MM |
| FRAME HEIGHT | 100 MM |
| SASH WIDTH | 30 MM |
| SASH HEIGHT | 48, 16 MM |
| SASH TO SASH WIDTH | 48 MM |
| MAXIMUM HEIGHT OF SASH | 2.6 M |
| SASH WEIGHT | 120 KG |
| GLAZING | 24 MM |
| INSULATION | PVC, POLYMIDE |

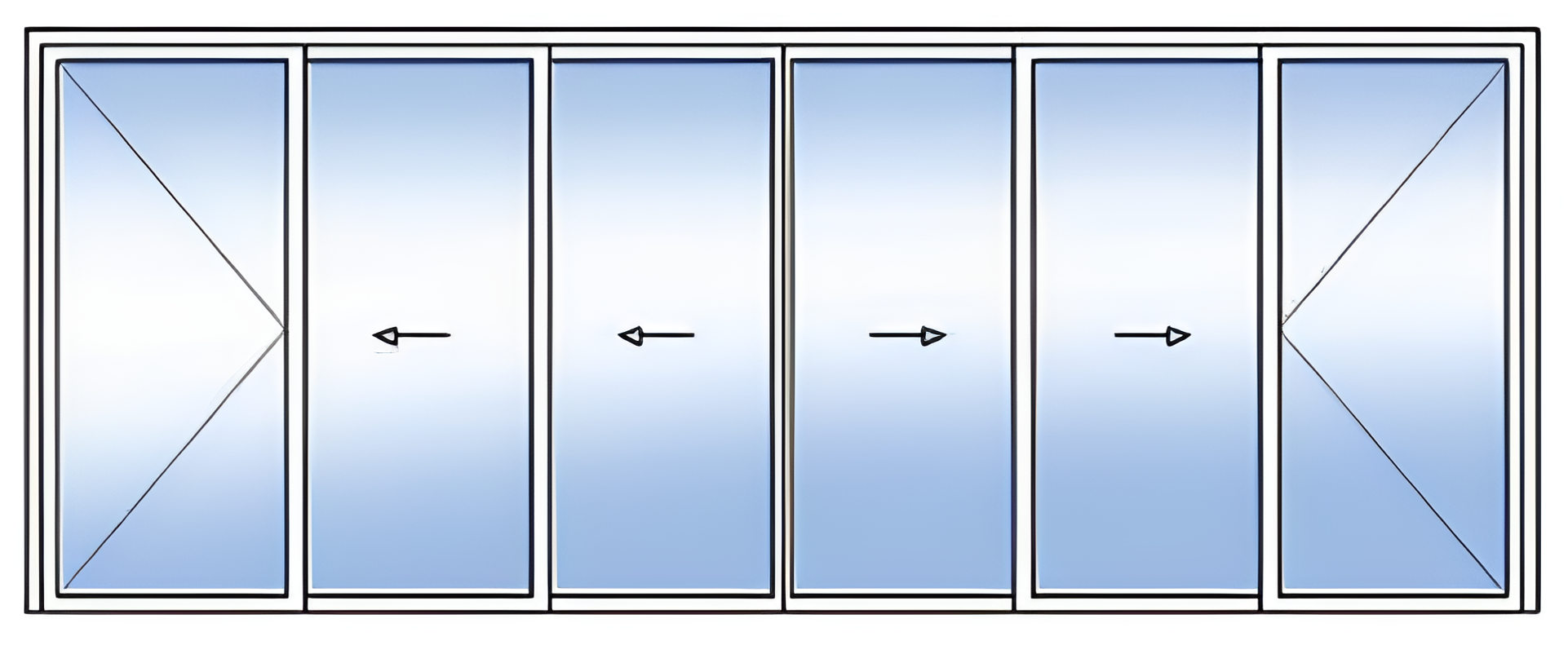

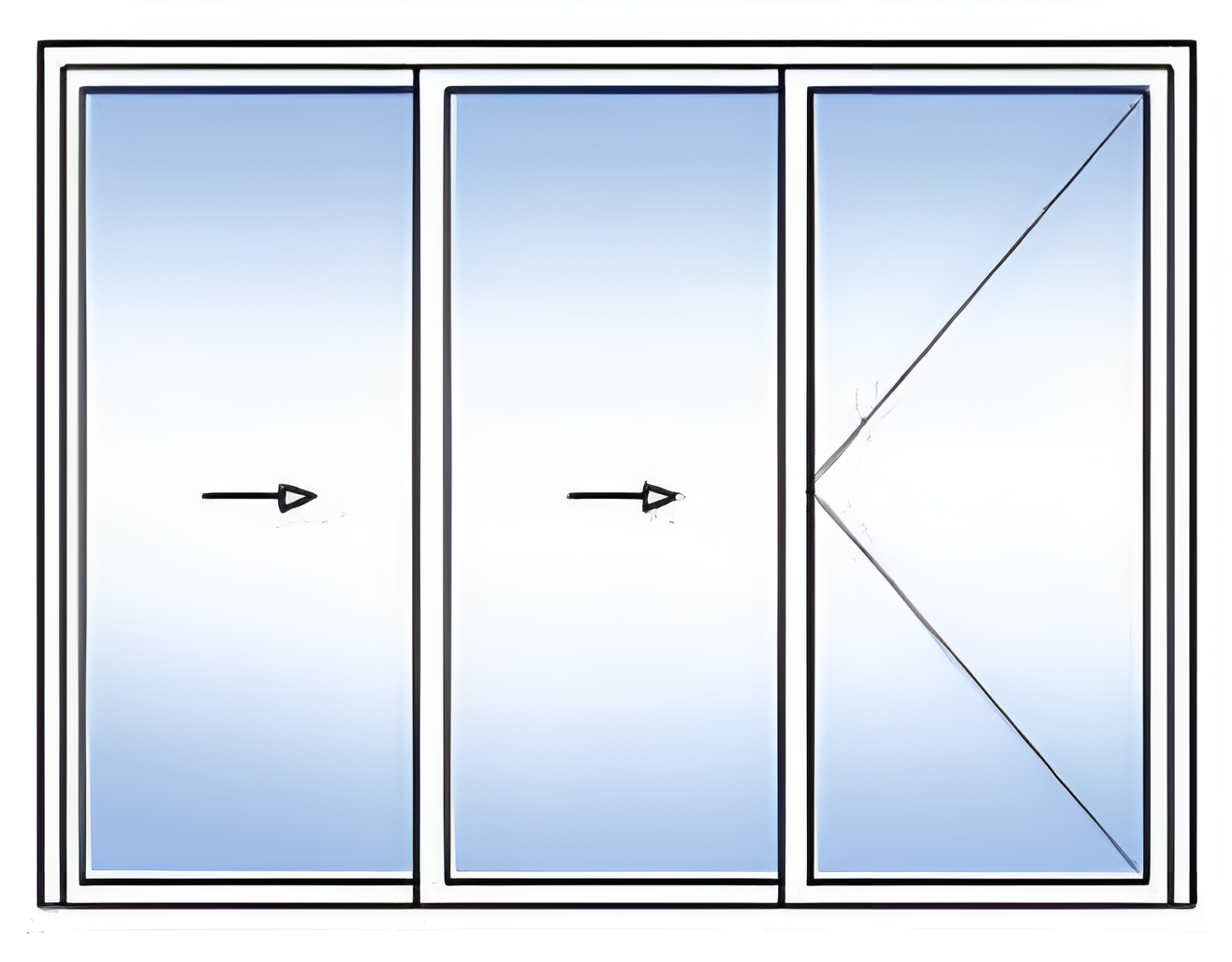

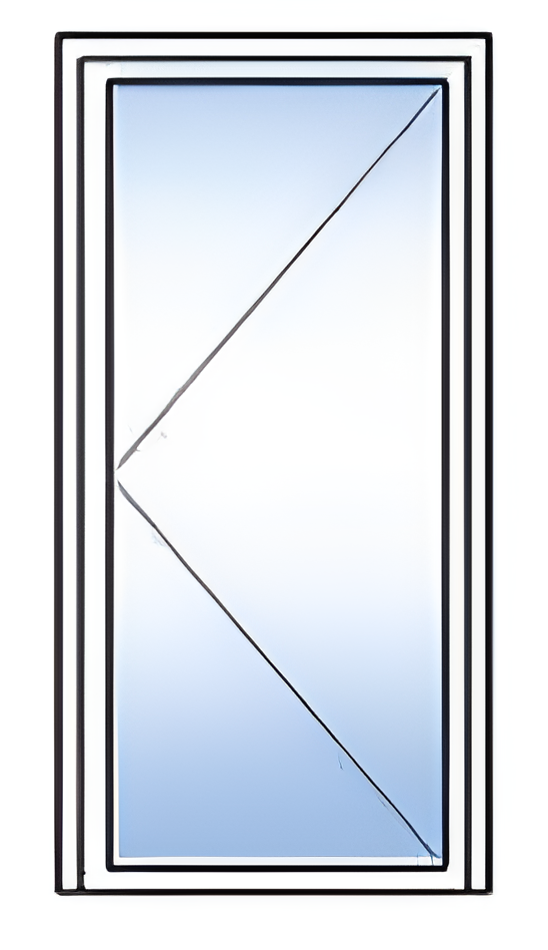

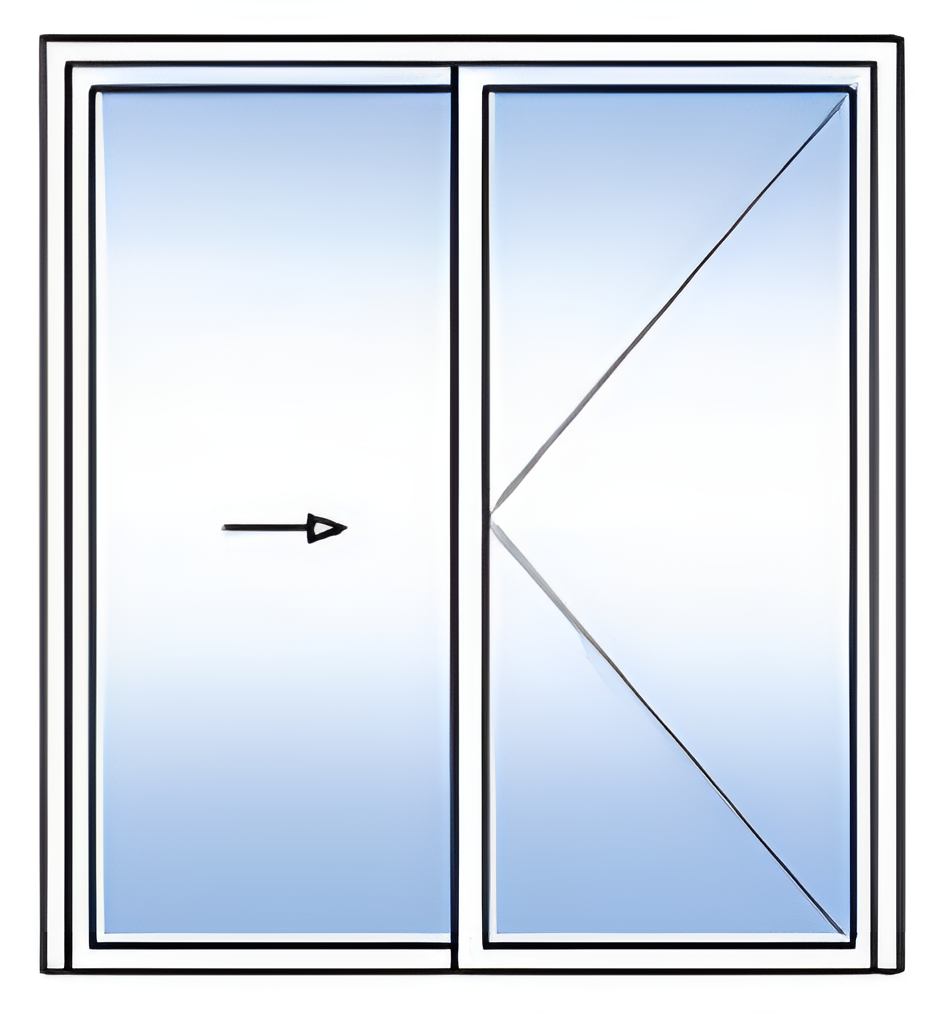

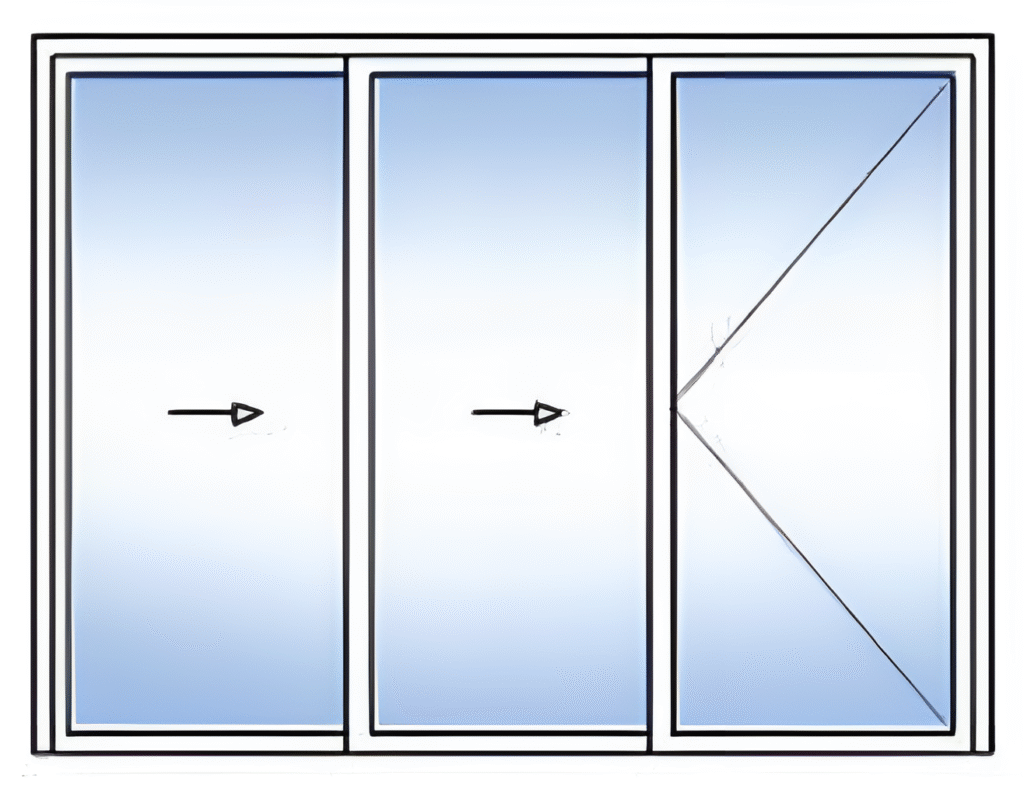

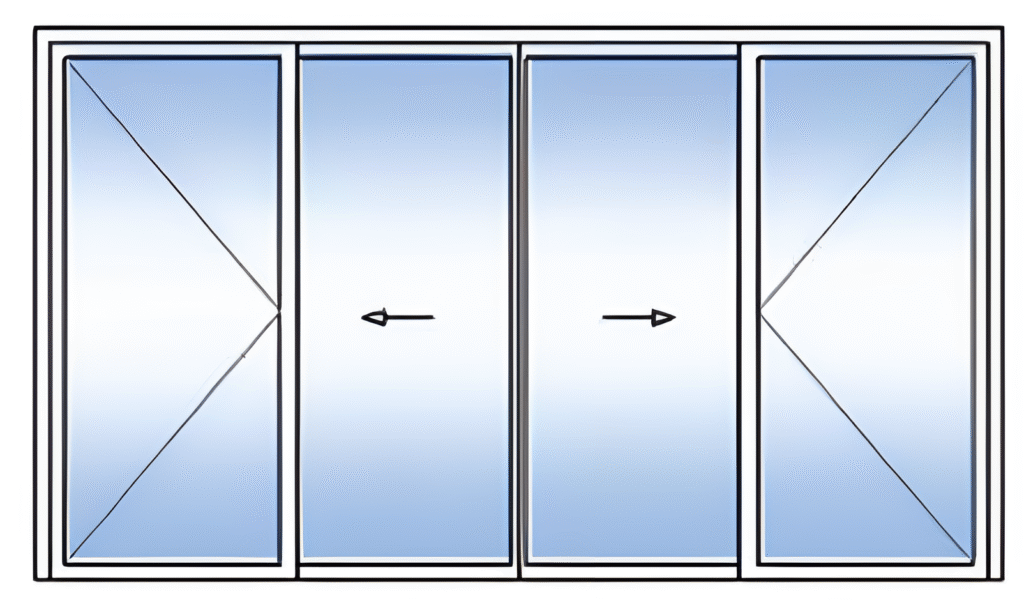

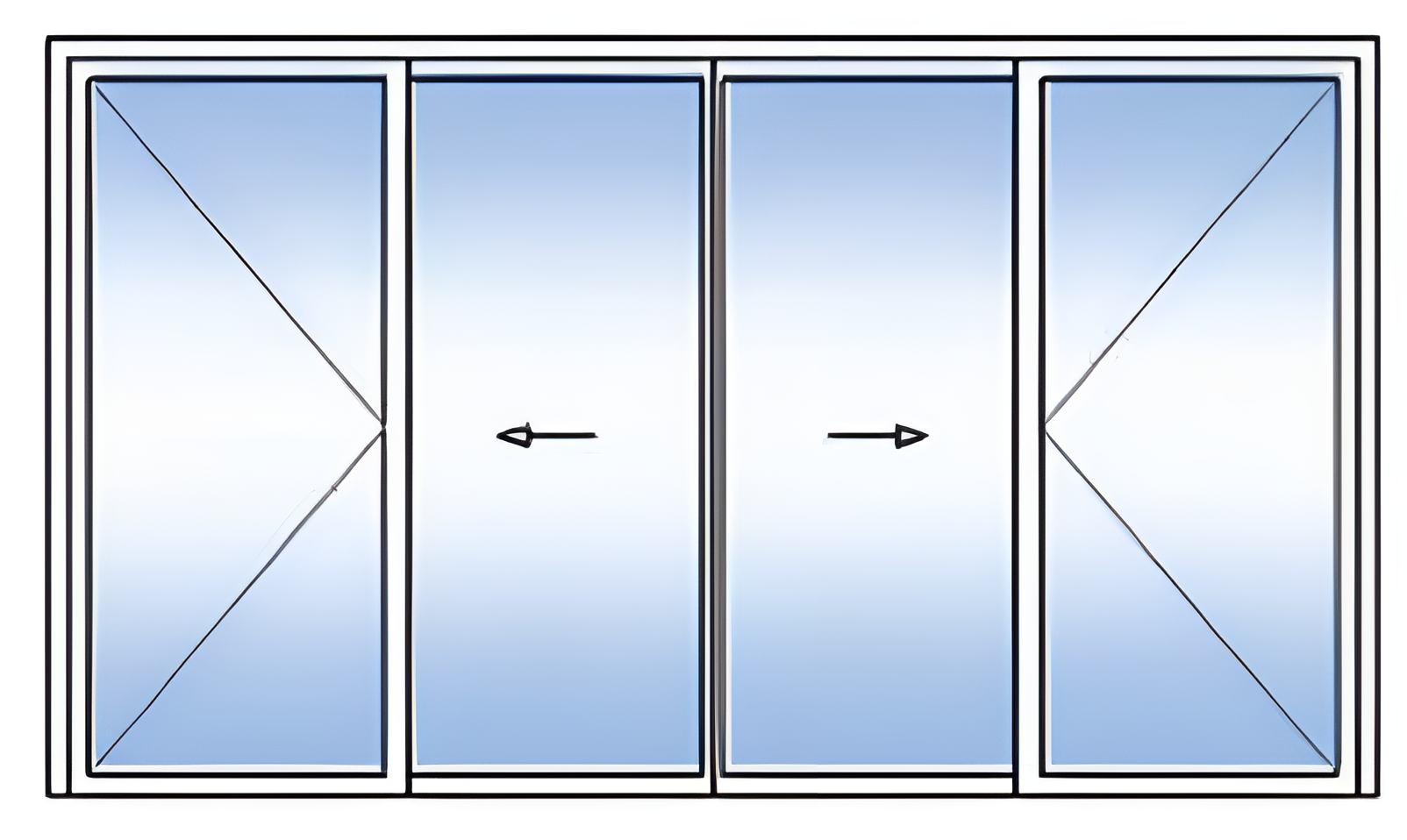

Typology
