TILT & SLIDE T100
A Defined method of ensured ventilation with a visible nature
The Functionality
The Tilt & Slide T100 system combines the convenience of sliding functionality with tilt options for ventilation, making it a versatile choice for spaces that benefit from airflow without compromising security or indoor space.
The Functionality
The Tilt & Slide T100 system combines the convenience of sliding functionality with tilt options for ventilation, making it a versatile choice for spaces that benefit from airflow without compromising security or indoor space.
Key Highlights
Dual Functionality
Provides the option to tilt for ventilation or slide for full access, making it ideal for rooms that require fresh air circulation without fully opening the window.
Thermal Insulation
With PVC and polyamide insulation, the T100 offers high energy efficiency, reducing thermal transfer and lowering energy expenses.
Minimalist Design for Large Glass Panels
Accommodates fixed glass panels up to 3.5 meters wide, creating an open, modern look.
Technical Specifications
Frame and Sash Specifications
Frame width ranges from 100-120mm, with sash width and height adaptable to various designs.
Sash Capacity and Glazing
Supports sash heights up to 2.6 meters and a sash weight of up to 120kg, making it suitable for substantial glass panels while maintaining smooth functionality.
T100 I TILT & SLIDE SYSTEM
Thermally Insulated
| FRAME WIDTH | 100, 120 MM |
| FRAME HEIGHT | 70, 52 MM |
| SASH WIDTH | 72, 45 MM |
| SASH HEIGHT | 100, 23 MM |
| SASH TO SASH WIDTH | 45, 118 MM |
| MAXIMUM HEIGHT OF SASH | 2.6 M |
| SASH WEIGHT | 120 KG |
| GLAZING | 28, 30 MM |
| INSULATION | PVC POLYMIDE |

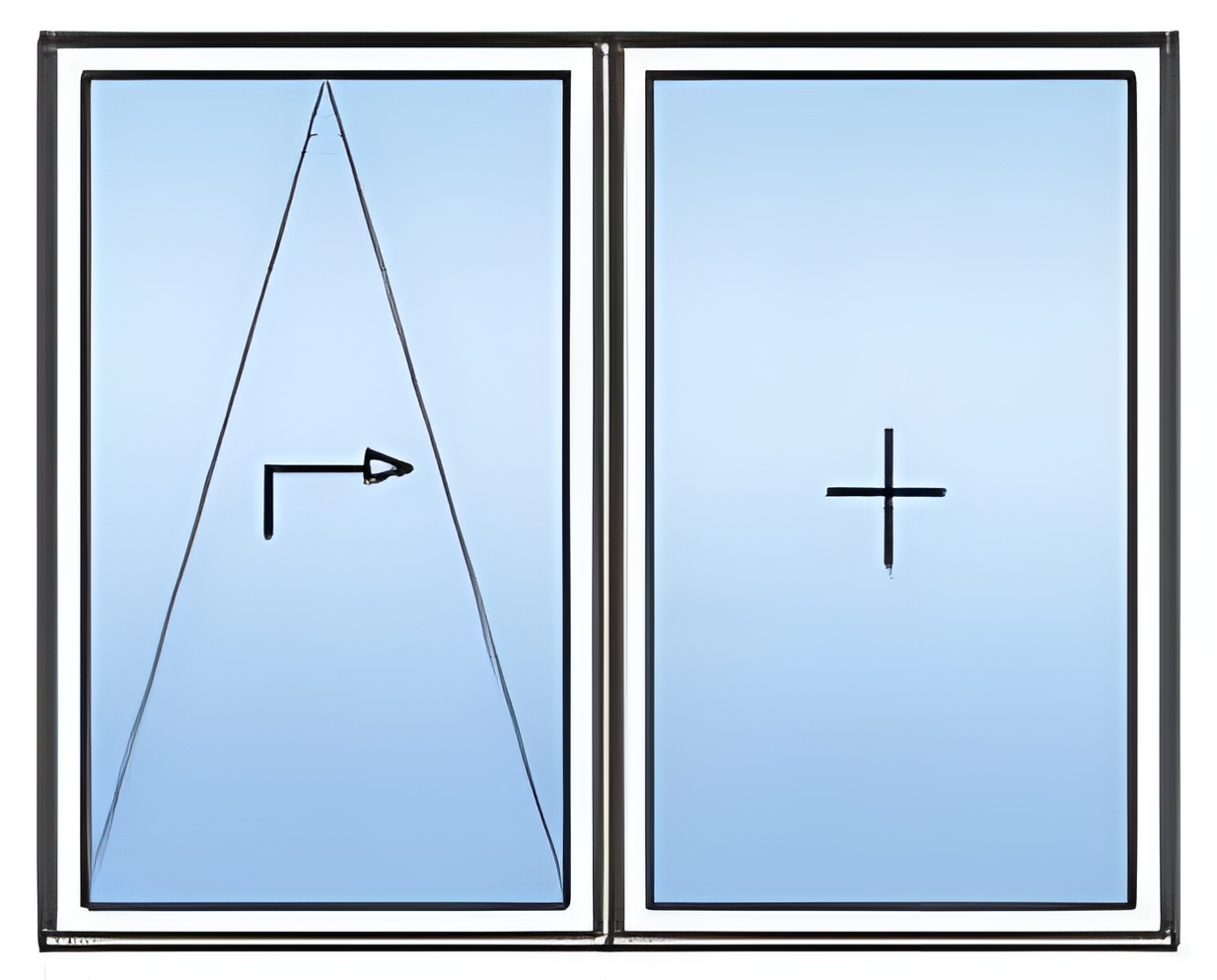

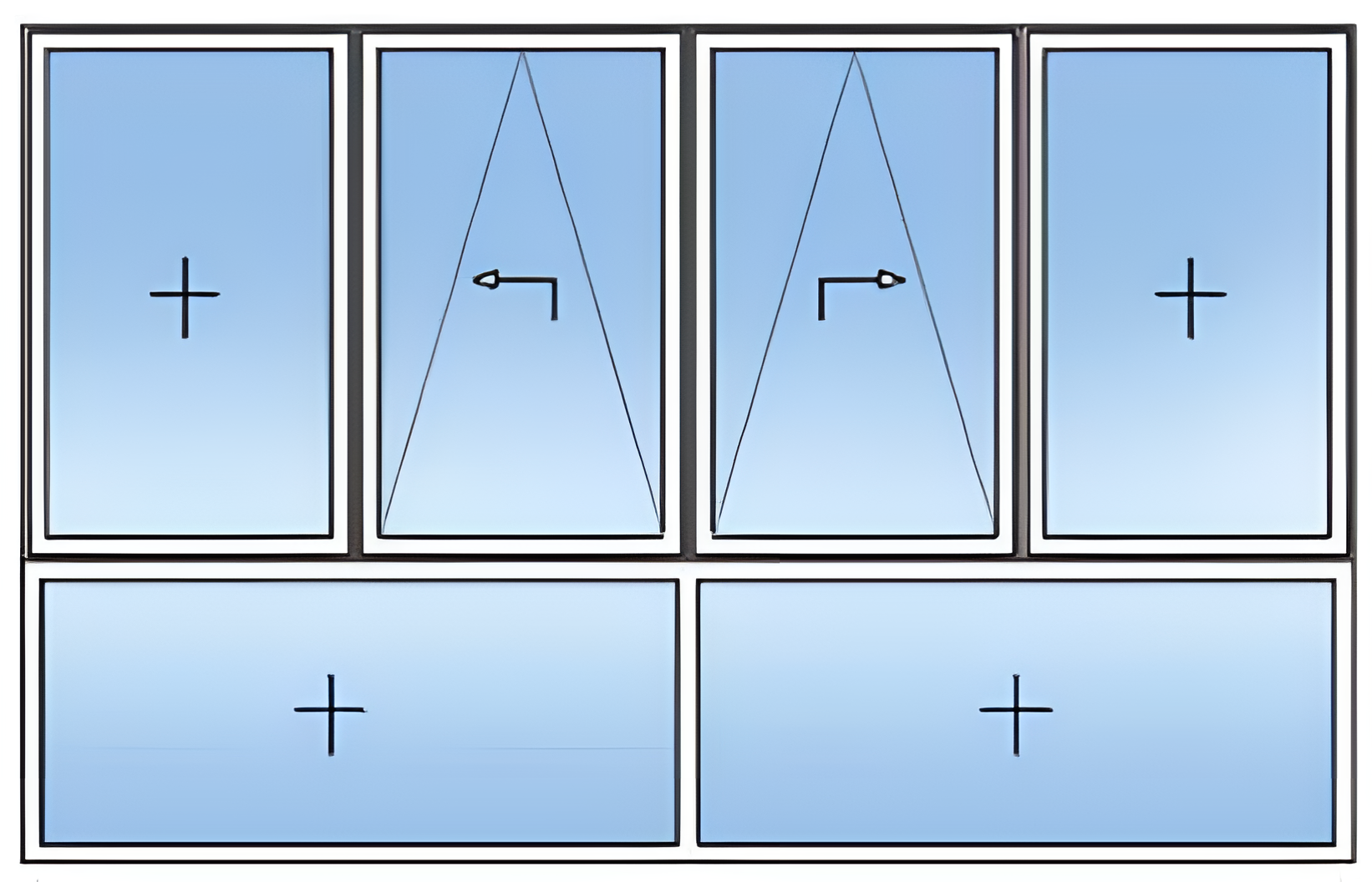

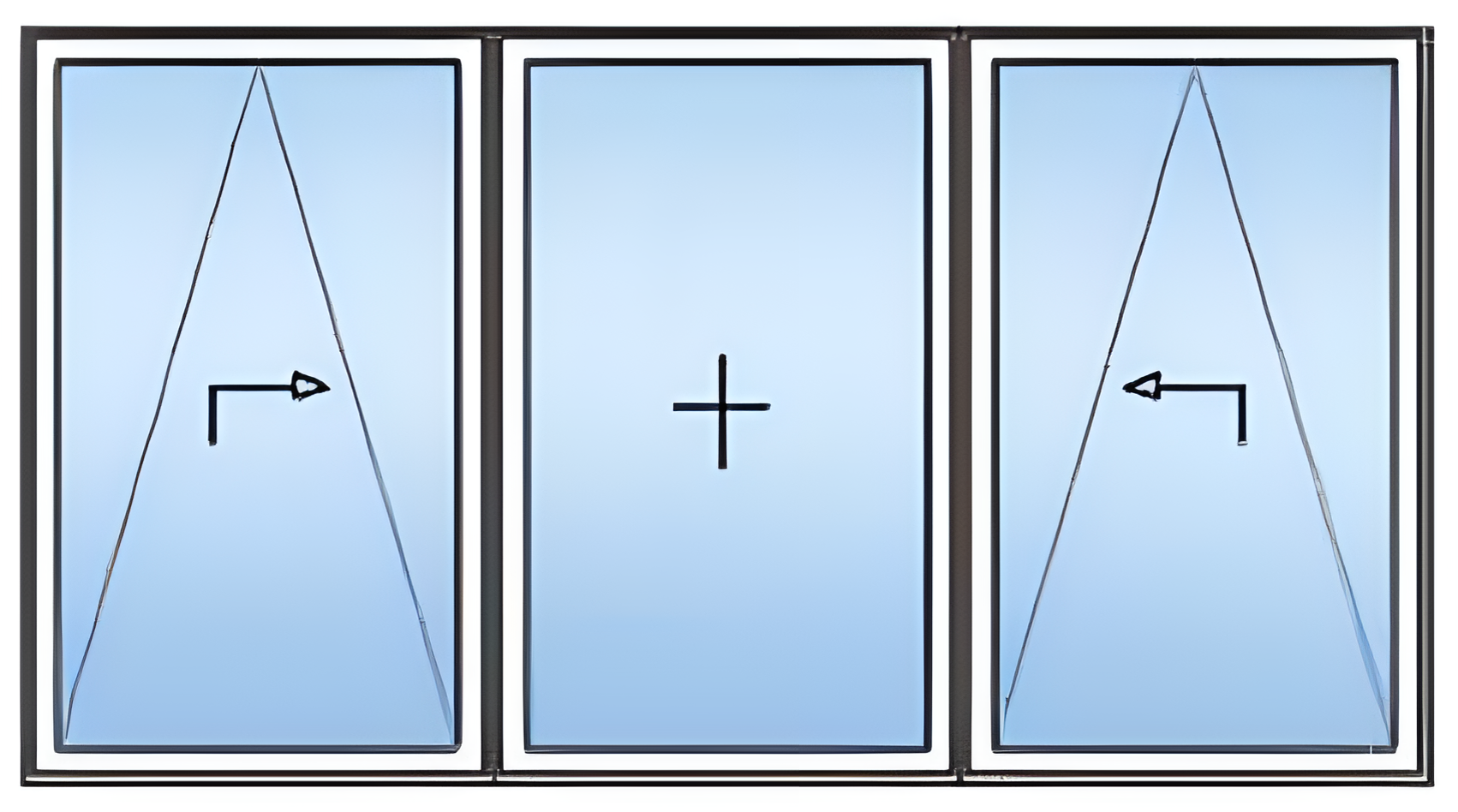

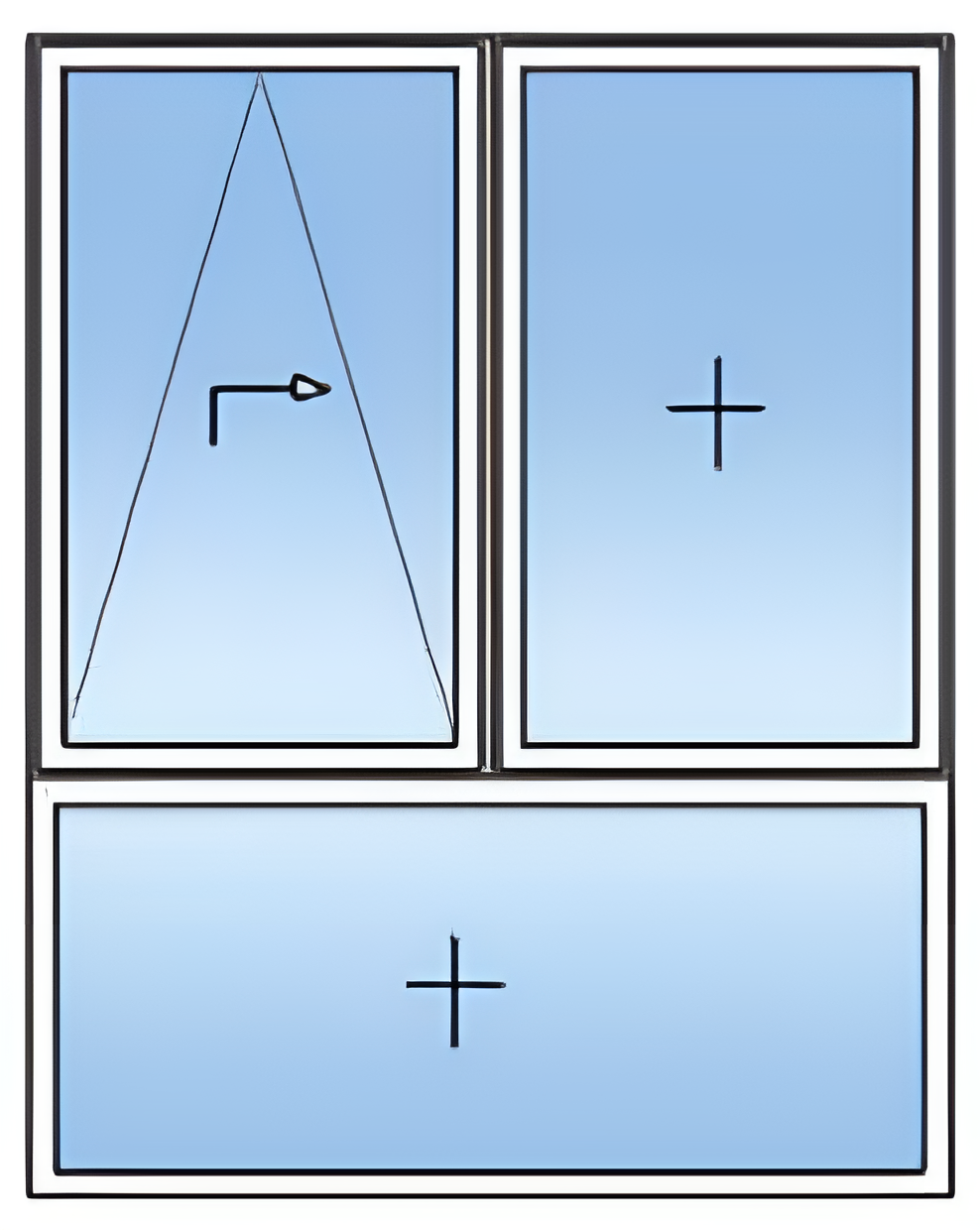

Typology
